CHL / BGA

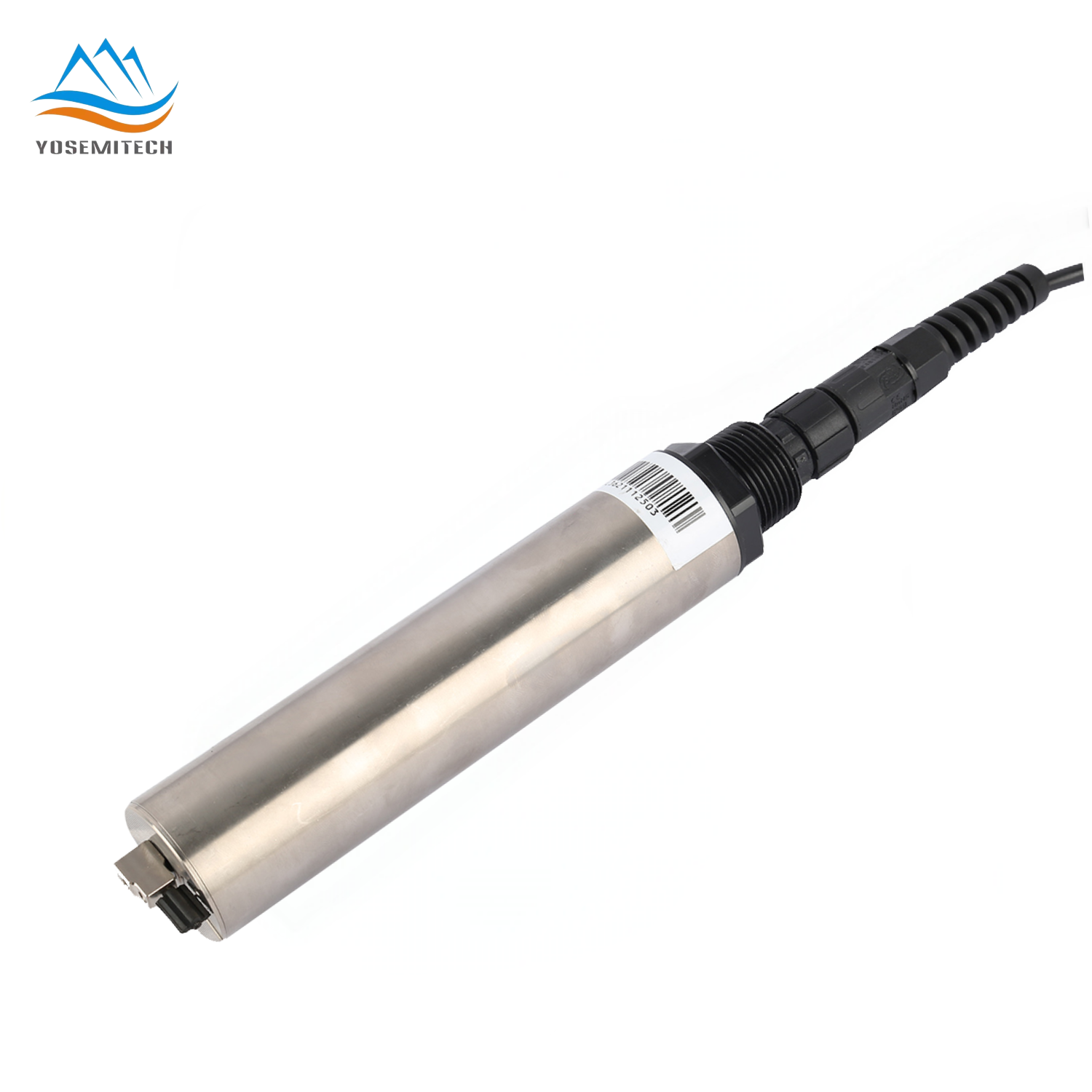

Y514-A Self-cleaning Chlorophyll Sensor

  • Product Model:Y514-A
  • Time: 2022-12-02 13:21:52
  • Product description:Y514-A chlorophyll digital sensor, using leading optical technology,Y514-A has integrated automatic cleaning wiper, witch can effectively reduce biofouling and deliver quality long term monitoring data. With efficient power management, robust design, stable reading, free from frequent maintenance and calibration, Our chlorophyll probes are idea for long term online monitoring use. It can be widely used in rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources and other fields of algae and phytoplankton monitoring, investigation and research.

Overview

Y514-A Digital Chlorophyll Sensor adopts leading optical technology. Y514-A Chlorophyll Probe with automatic cleaning wiper can effectively reduce biofouling and deliver quality long term monitoring data. With efficient power management, robust design, stable reading, free from frequent maintenance and calibration, Our chlorophyll probes are idea for long term online monitoring use. It can be widely used in rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources and other fields of algae and phytoplankton monitoring, investigation and research.

Features

-Advanced LED fluorescence sensing technology.
-With automatic cleaning wiper, effectively eliminate the bubbles and eliminate optical surface biofouling.
-Sapphire window, never scratches, durable for field use.
-RS485 output, standard Modbus protocol compatible.
-On-line continuous monitoring, real-time control of water quality dynamics.

Specifications

NameChlorophyll Sensor
ModelY514-A
Measuring principleFluorescence method
Range0-500μg/L
Accuracy±5% or 0.5μg/L(take the bigger one)
Resolution0.01μg/L
Temperature range0-50℃
Maximum water depth30m
IP rangeIP68
InterfaceRS-485,MODBUS protocol
Power supply0.2W(non-wiping)0.6W(wiping);DC 12-24V,>500mA
SizeΦ36mm*198.2mm
Cable length10 m (default), customizable
Calibration0-point or 1-point or 2-point calibration
Sensor housing materialTi
