Y600-A&Y507-A Portable Dissolved Oxygen Meter

  • Product Model:Y507-A
  • Time: 2023-03-16 03:58:16
  • Product description:Yosemitech Y600-A&Y507-A Portable Dissolved Oxygen(DO) Meter has high accuracy and stability, and can be used in unstable conditions of aeration tank, sewage plant and other water bodies with high effect.

Overview

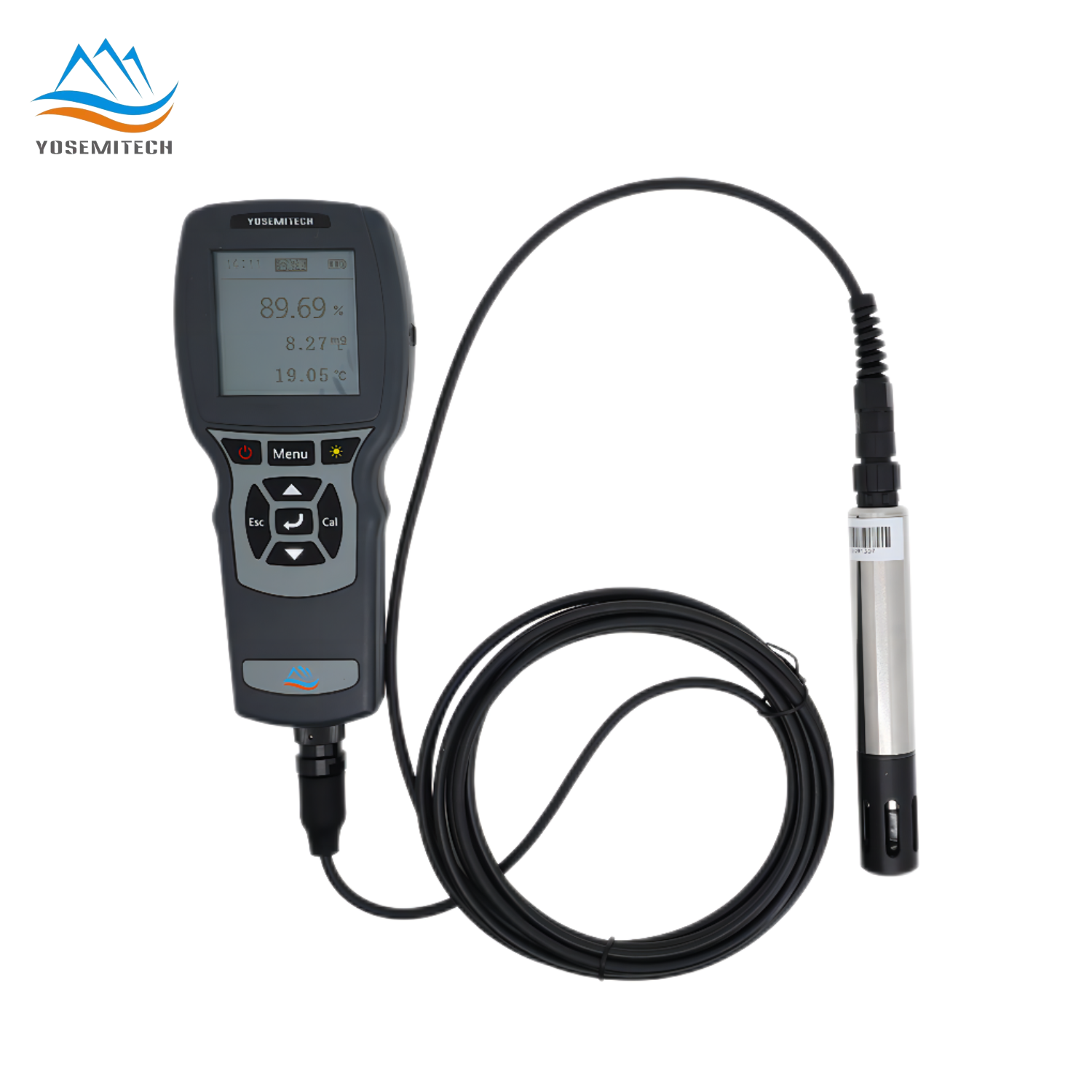

Yosemitech Y600-A Handheld Instrument provides keyboard and backlight with comprehensive functions, simple operation and brief interface. The instrument is a portable device that can automatically recognize Yosemitech's digital sensors including optical dissolved oxygen, 4-electronic conductivity, turbidity, chlorophyll, BGA, OIW and TSS ,and can measure, display, log. The microprocessor based meter can transmit USB signals and perform sensor calibration easily on a single platform.

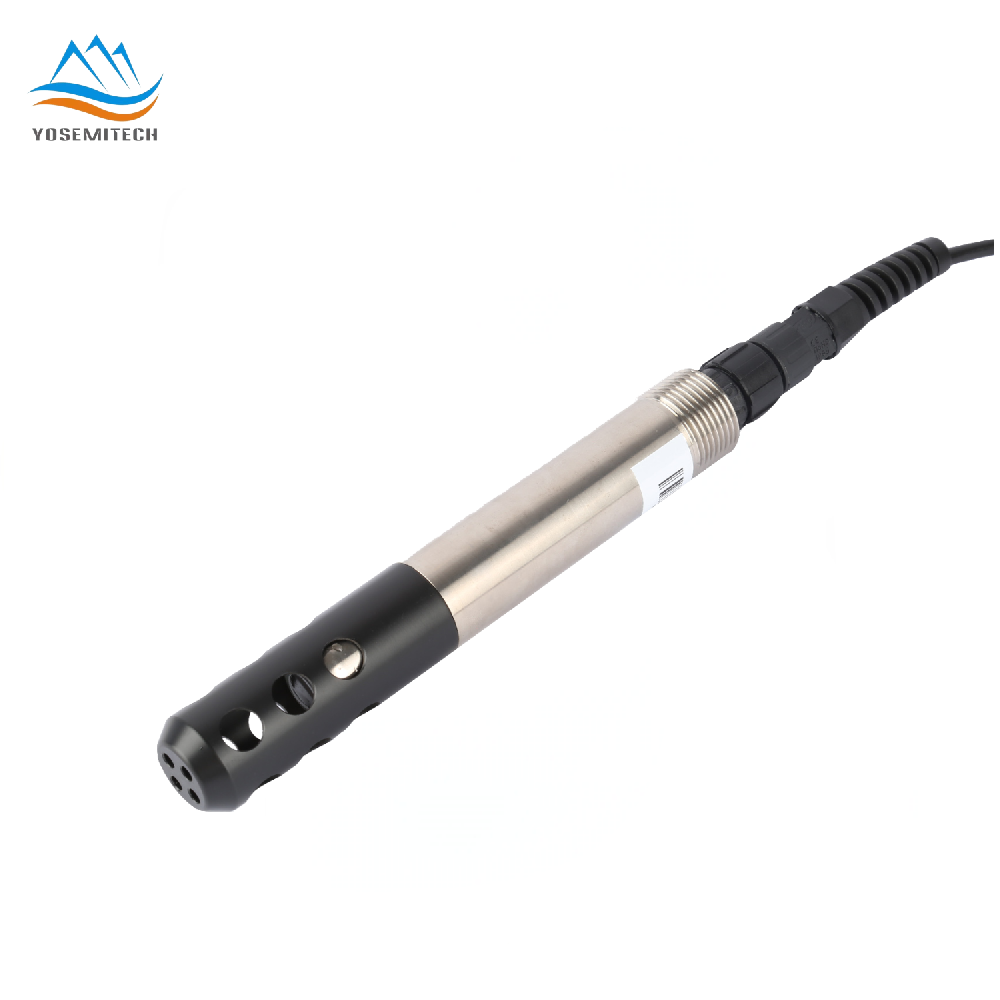

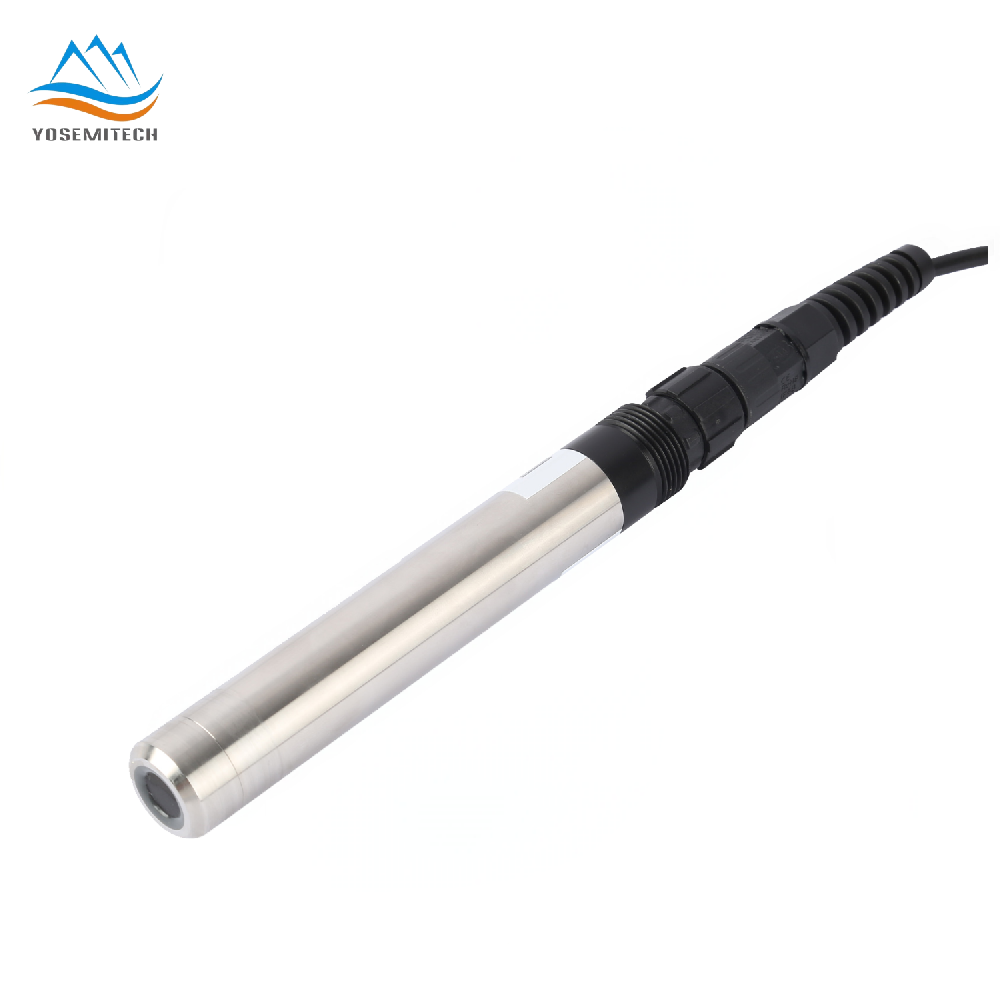

Y507-A Dissolved Oxygen Probe adopts the internationally leading fluorescence lifetime technology, which is based on the quenching principle of specific substances to active fluorescence in physics. The remarkable advantage of this fluorescence method in measuring dissolved oxygen is that it does not consume oxygen in the measurement process, so there is no flow rate limit, no need to preheat electrolyte, no need for maintenance and frequent calibration. The response time of optical dissolved oxygen probe is as low as 20 seconds, making the measurement of dissolved oxygen more accurate, more stable, faster and more convenient.
Y600-A&Y507-A Portable Dissolved Oxygen Meter, with automatic temperature and pressure compensation, salinity manual input compensation function; It supports automatic locking of dissolved oxygen detection value and setting of filtering mode. This Optical Do Meter has high accuracy and stability, and widely used in Wastewater treatment facilities, Aeration tanks, Aquaculture systems, Environmental monitoring stations, Research laboratories, Industrial process control.

Features

- Lightweight and portable;
- High efficiency fluorescent film.
- Fast, easy-to-read results with large digital LCD readout.
- No oxygen consumption, no flow limitations.
- Fast response, higher than national standards.
- All calibration data is stored on the sensor for on-site direct installation and use.

Specifications

Name

Portable Dissolved Oxygen Meter

Model

Y507-A

Measurement principle

Fluorescence method

Range

0-20mg/L or 0-200% saturation

Accuracy

±1% or ±0.3mg/L(take the bigger one)

Temperature range

0-50℃

Response time

20s

Max pressure

6bar

IP rating

IP68

Interface

Matching Yosemite's Y600-A multi-functional handheld instrument

Probe size

Φ26mm*175mm

Cable length

5m(default), customizable

Probe weight

204g

Calibration

One point or two points calibration

Sensor housing material

316L

Name

Multi-function handheld instrument

Model

Y600-A

Weight

460g

Power supply

Two 18650 rechargeable batteries

Working temperature

0-50℃

Storage temperature

-30~70℃

Display

54.38 x 54.38mm LCD back illuminated

Data storage

Support

Air pressure compensation

Instrument built-in, automatic compensation 50~115kPa

IP rating

IP67

Timed shutdown

Support


portable dissolved oxygen meter.jpg
