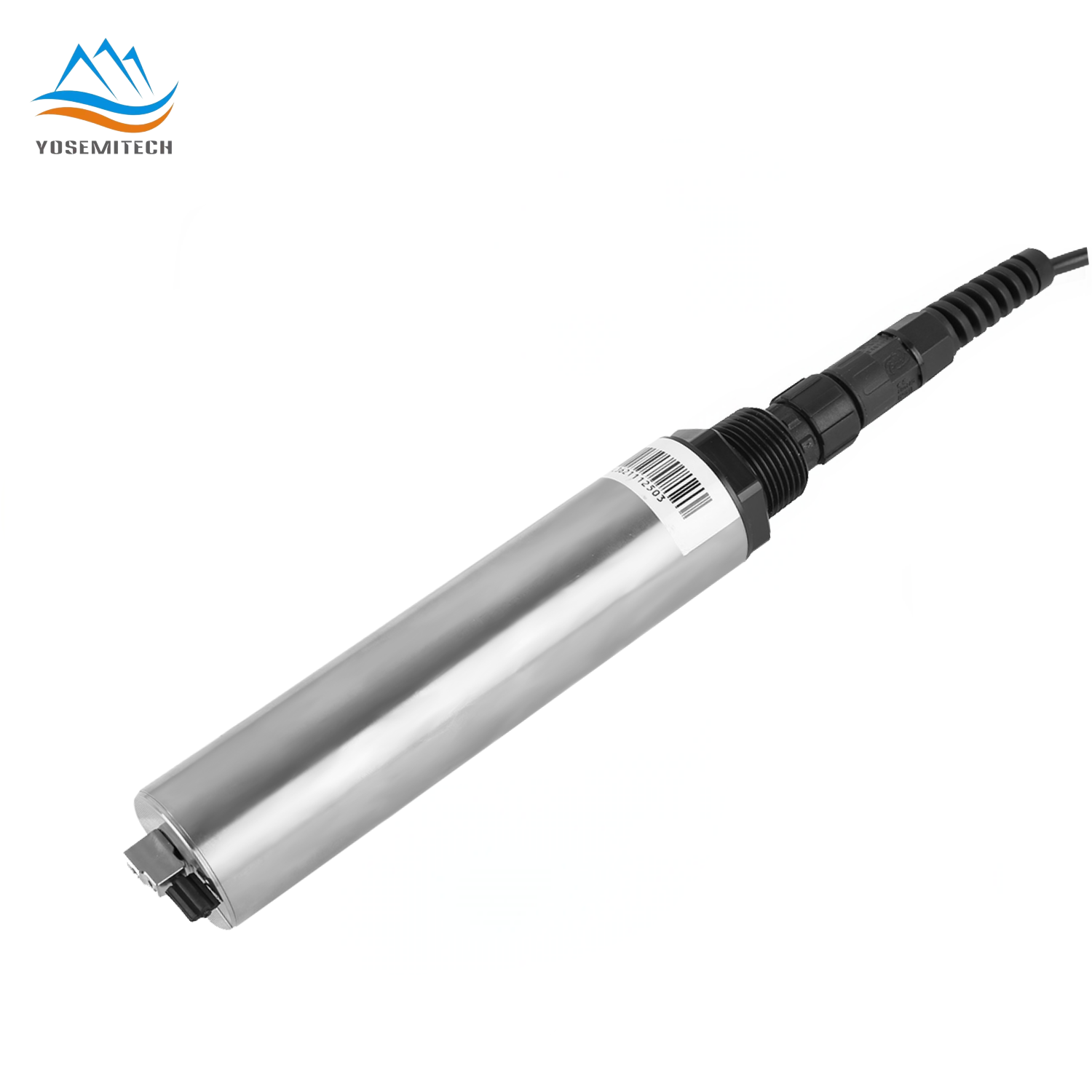

Y511-A Self-cleaning Turbidity Sensor

  • Product Model:Y511-A
  • Time: 2022-12-02 13:31:36
  • Product description:Yosemitech Y511-A in line Turbidity Sensor with self-cleaning brush uses of 90° scattered light measurement principle, in line with the ISO7027 international standard, custom optical devices, small size, easy installation and maintenance, not easy to be affected by ambient light interference, with better repeatability and stability.

Overview

Y511-A In line Turbidity Sensor adopts 90° scattered light measurement principle, in line with the ISO7027 international standard, custom optical devices, small size, easy installation and maintenance, not easy to be affected by ambient light interference, with better repeatability and stability. Yosemitech Turbidity Probe with automatic cleaning brush, can eliminate the impact of bubbles and contamination on measurement, making longer maintenance cycle, long-term online use can also maintain excellent stability.

Features

-Digital sensor, RS-485 output, standard Modbus protocol;
-90°Scattering light principle, in line with ISO7027 international standards;
-Sapphire optical window, customized filters,Not vulnerable to ambient light and chroma interference;
-With self-cleaning brush to prevent microorganisms from attaching and extend the maintenance cycle;
-Built-in calibration parameters, accurately calibrated before delivery, ready for direct installation and use
-Excellent repeatability and stability.

Specifications

NameOnline Turbidity Sensor
ModelY511-A
Measuring principle90° scattering method
Range0-1000NTU or 0-4000NTU, other ranges can be customized
Accuracy±5% or 0.3NTU(take the bigger one)
Temperature range0-50℃
Maximum water depth30m
IP rangeIP68
InterfaceRS-485,MODBUS protocol
Power supply0.2W(non-wiping)0.6W(wiping);DC 12-24V,>500mA
InstallationNPT3/4 thread, immersion installation
SizeΦ36mm*198.2mm
Cable length10 m (default), customizable
Calibration0-point or 1-point or 2-point calibration
Sensor housing materialTi
