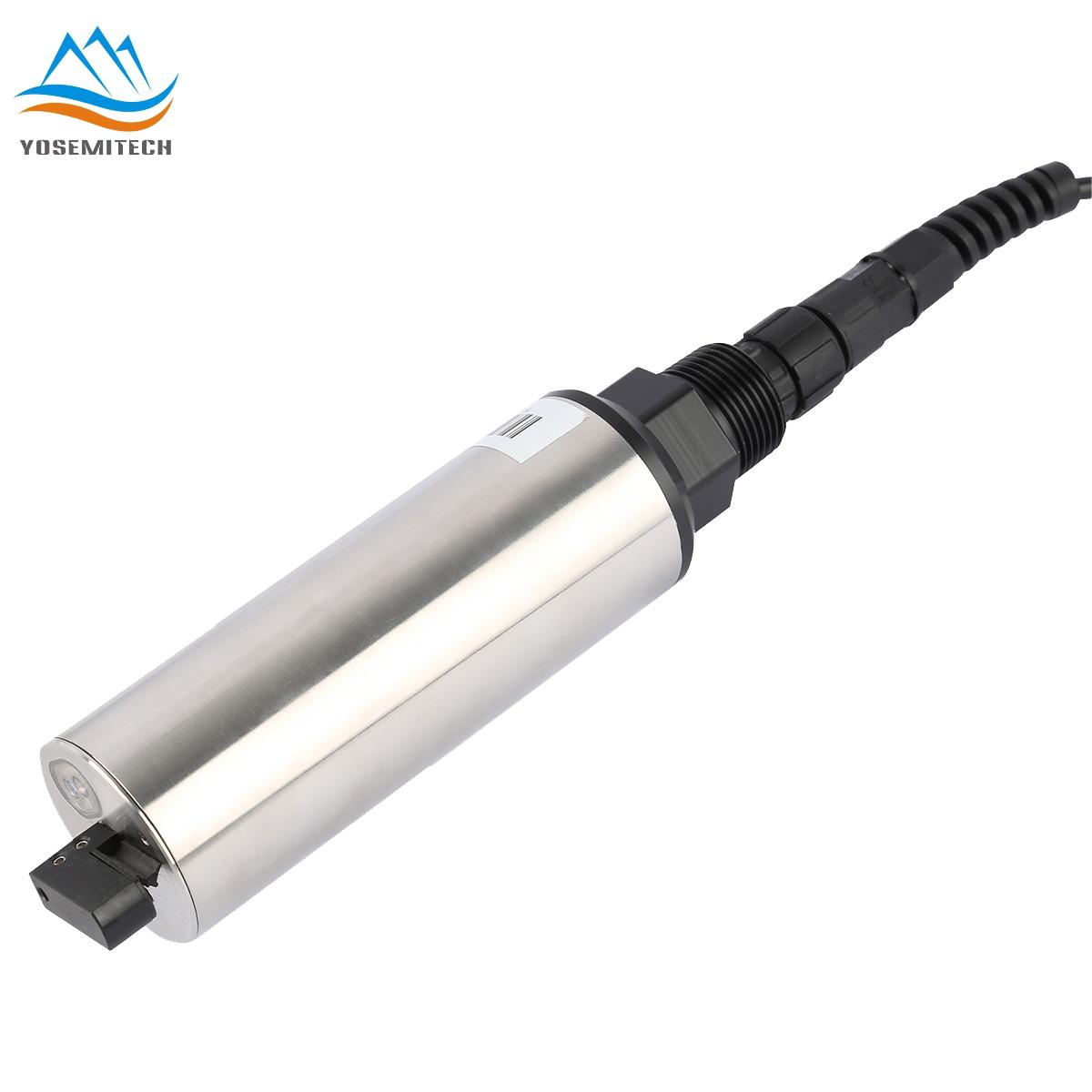

Y519-A CDOM/FDOM Sensor with Self-cleaning Brush

  • Product Model:Y519-A
  • Time: 2024-11-04 10:41:05
  • Product description:Yosemitech Y591-A highly sensitive UV CDOM/FDOM Sensor is for real-time, in situ detection of colored dissolved organic matter. CDOM sensor adopts ultraviolet fluorescence analysis principle to detect colored soluble organic matter in water.

Overview

Yosemitech Y591-A highly sensitive UV CDOM/FDOM Sensor is for real-time, in situ detection of colored dissolved organic matter. CDOM sensor adopts ultraviolet fluorescence analysis principle to detect colored soluble organic matter in water. It is suitable for the measurement of colored soluble organic matter in rivers and lakes, and has the characteristics of high sensitivity and small size. Our sensor with an self-cleaning brush that eliminates air bubbles and reduces the impact of contamination on measurements for longer maintenance cycles and provides excellent stability for long-term online use, reducing your maintenance costs and offering you stable and accurate readings.

Features

-Digital sensor, RS485 output, standard MODBUS protocol.
-Adopting ultraviolet fluorescence analysis principle to detect colored soluble organic matter in water.
-Can measure seawater and high salinity samples, low maintenance.
-With self-cleaning brush to prevent microbial attachment, longer maintenance cycle.
-Built-in calibration parameters for easy field use and secondary calibration.

Specifications

NameCDOM Sensor
ModelY519-A
Measuring principleUltraviolet fluorescence method
Range0-400ppb (Quinine sulfate solution standard substance)
LinearityR² > 0.999 (Continuous dilution of standard solution)
Resolution0.01ppb
Temperature range0-50℃
Maximum water depth30m
IP rangeIP68
InterfaceRS-485,MODBUS protocol
Power0.2W(non-wipingh)0.6W(wiping);DC 5-12V,>500mA
SizeΦ45mm*190.8mm
Cable length10m(default) and can be customized
Calibration1-point or 2-point calibration
Sensor housing material316L(Ti)
