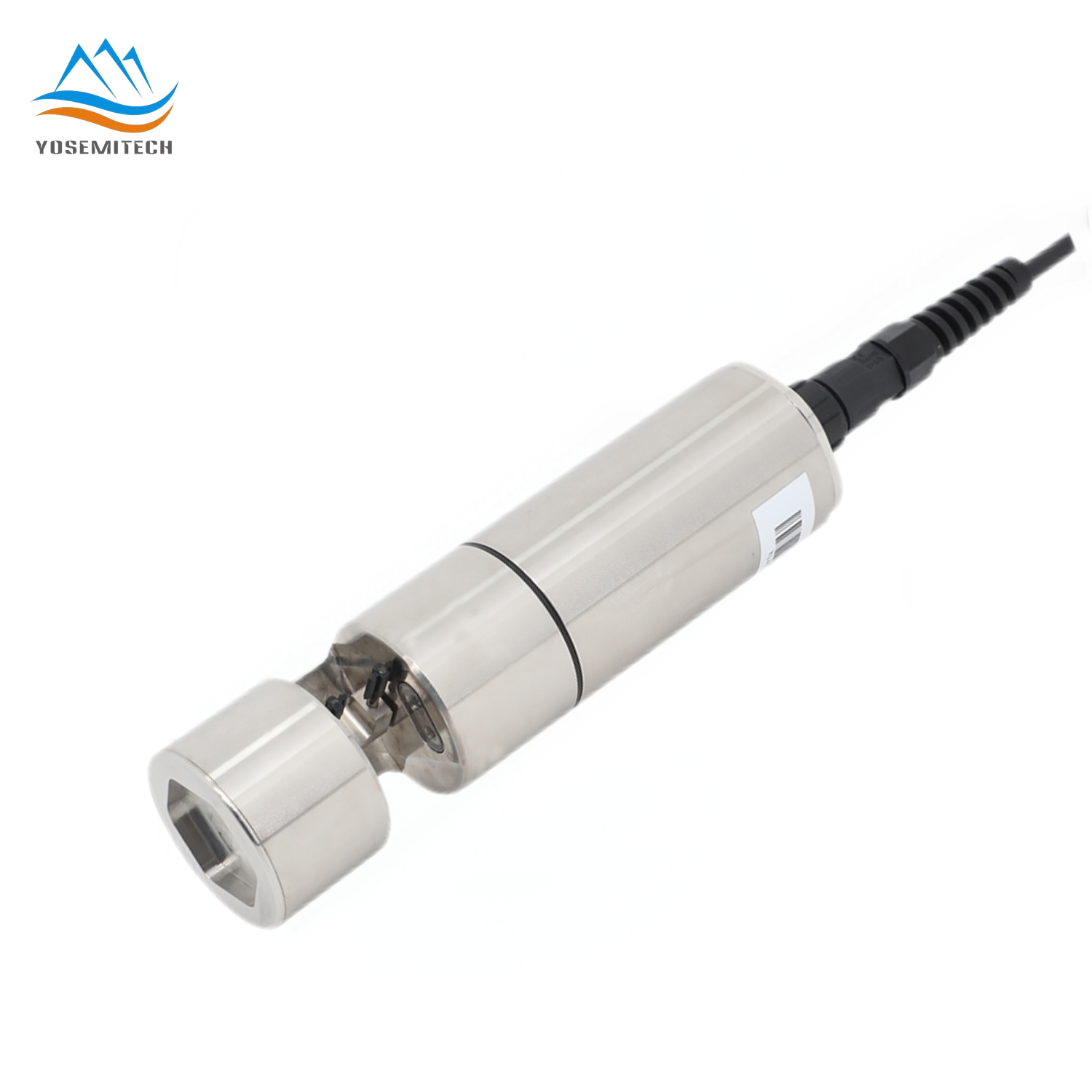

Y531-A Self-Cleaning Color Sensor

  • Product Model:Y531-A
  • Time: 2023-08-03 15:56:51
  • Product description:Yosemite's Y531-A self-cleaning color sensor adopts absorption measuring principle. The color sensor comes with an automatic cleaning feature that adjusts for turbidity, ensuring consistent stability even during long-term online water quality monitoring. It is ideal for cost effective monitoring at the intake stage of drinking water treatment, surface water, municipal and industrial wastewater treatment.
  • Online Message
  • Email: sales@yosemitech.com

Product Description

Yosemitech Y531-A self-cleaning color sensor utilizes the absorption measuring principle in accordance with ISO standards. It features a rugged design and automatic water turbidity compensation, making it suitable for monitoring the apparent color of water where precise indication is needed. This color sensor is ideal for cost-effective monitoring at the intake stage of drinking water treatment, surface water, and municipal and industrial wastewater treatment.

Product Features

Small size, easy to install and maintain, with better repeatability and stability;

Self-cleaning brush to prevent the adhesion of impurities and microorganisms;

Maintenance-free, long service life, low cost of use.

Product Size

color sensor size.png

Product Parameters


Name

Color Sensor

Model

Y531-A

Range

0-500 Hazen

Linearity

R²>0.999

Temperature range

0 ~ 50℃

Sensor Interface

Support RS-485, Modbus protocols

Power Requirements

DC 9~24V, 1A

Construction

Immersion installation

Sensor Size

Φ46mm*189.5mm

Maximum pressure

3bar

Housing IP Rating

IP68

Probe cable length

10m (default), customizable

Calibrate

one-point or two-points calibration

Sensor material

 Ti

The above technical specifications are tested under standard solutions in laboratory environment. and subject to change without notice.
