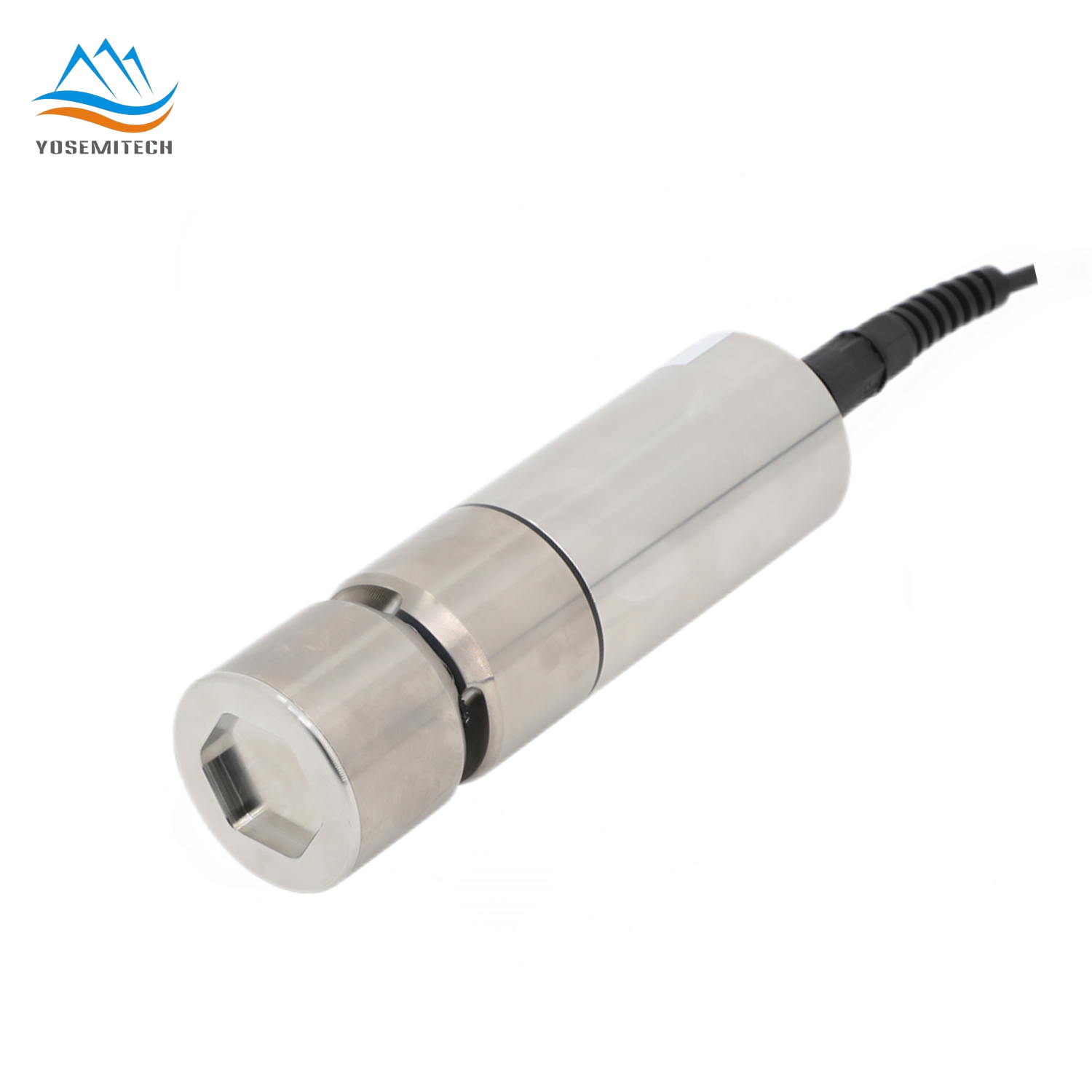

Y551-C UV254 COD senser（2.5mm）

Product Model：Y551-C
Time: 2023-03-21 15:34:38
Product description：UV254 COD sensor features highly reliable UVC LED for light absorption measurement. This proven technology provides reliable and accurate analysis of organic pollutants for water quality monitoring at low cost and low maintenance. With rugged design, and integrated turbidity compensation, it is an excellent solution for continuous monitoring of source water, surface water, municipal and industrial wastewaters.
Online Message
Email: sales@yosemitech.com

Product Description

UV254 COD sensor features highly reliable UVC LED for light absorption measurement. This proven technology provides reliable and accurate analysis of organic pollutants for water quality monitoring at low cost and low maintenance. With rugged design, and integrated turbidity compensation, it is an excellent solution for continuous monitoring of source water, surface water, municipal and industrial wastewaters.

Product Features

Digital sensors, digital RS-485 output, Modbus protocol;

No chemicals, direct UV254 spectral absorption measurement;

Proven UVC LED technology, long lifetime, stable and instant measurement;

Measurement of parameters such as COD, TOC, turbidity and temperature;

With self-cleaning brushes to prevent biological adhesion and longer maintenance intervals.

Product Size


Product Parameters

Name	UV254 COD Sensor
Item	Y551-C
COD Range	0-1500 mg/L equiv.KHP
COD Accuracy	±5%
COD Resolution	0.01mg/L
TOC Range	0-600 mg/L
TOC Resolution	0.01mg/L
Turbidity Range	0-500 NTU
Turbidity Accuracy	±5%
Turbidity Resolution	0.01NTU
Temperature Range	0~50℃
Housing IP Rating	IP68
Maximum pressure	3 bar
Calibration	One-point or Two-pointsCalibration
Power	DC 12V -24V
Output	Support RS-485， Modbus protocol
Size	Φ50mm * 179mm
Cable Length	10m (default), customizable
Body materials	316L(custom titanium available)
