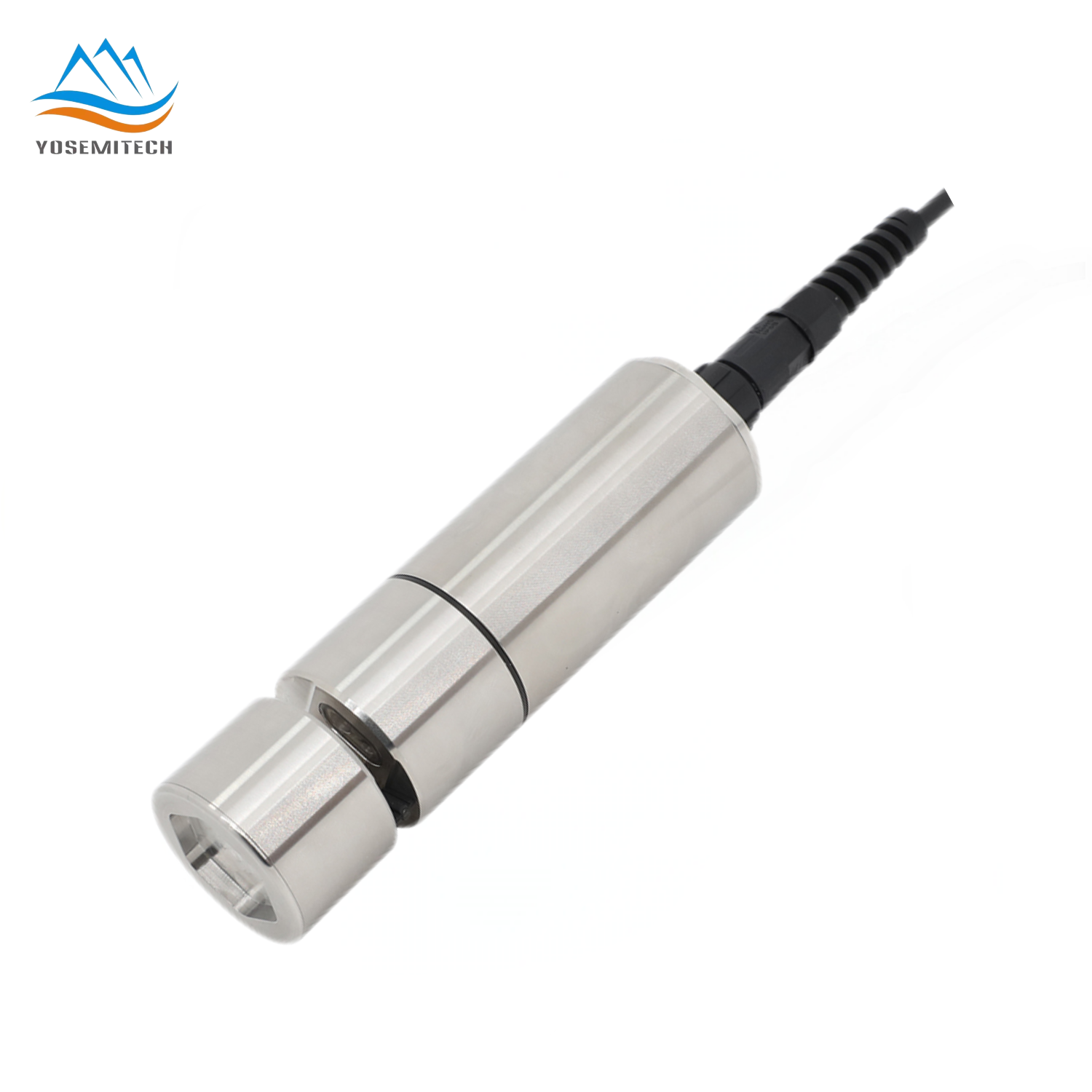

Y552-B Self-cleaning COD Sensor

Product Model：Y552-B
Time: 2023-05-04 14:54:33
Product description：Yoesemite‘s Y552-B self-cleaning COD sensor is based on the UV absorption principle, does not need reagents, will not cause pollution, more environmental protection; Integrated self-cleaning brush, easy to install and use, even long-term online monitoring still has excellent stability.
Online Message
Email: sales@yosemitech.com

Product Description

Yosemitech Y552-B self-cleaning COD Sensor adopts UV absorption principle, does not need reagents, will not cause pollution, more environmental protection; All-metal structure, compact size. Integrated self-cleaning brush, easy to install and use, even long-term online monitoring still has excellent stability. Chemical Oxygen Demand (COD) Sensor is widely used in surface water monitoring, sewage treatment, seawater monitoring, etc.

Product Features

Digital sensors, digital RS-485 output, Modbus protocol;

Proven UVC LED technology, long lifetime, stable and instant measurement;

Measurement of parameters such as COD, TOC, turbidity and temperature;

With self-cleaning brushes to prevent biological adhesion and longer maintenance intervals.

Product Size

self-cleaning COD sensor size.png

Product Parameters

Name	COD Sensor
Item	Y552-B
COD Range	0.5 to 500mg/L equiv.KHP
COD Accuracy	±5% equiv.KHP
COD Resolution	0.01mg/L
TOC Range	0.3 to 200mg/L equiv.KHP
TOC Accuracy	±5% equiv.KHP
TOC Resolution	0.01mg/L
Turbidity Range	0-500 NTU
Turbidity Accuracy	±5% or 0.5NTU
Turbidity Resolution	0.01NTU
Temperature Range	0~50℃
Housing IP Rating	IP68
Maximum pressure	3 bar
Calibration	One-point or Two-pointsCalibration
Power	DC 12V -24V，current<50mA (non wiping)
Output	Support RS-485， Modbus protocol
Size	Φ46mm*176mm
Cable Length	10m (default), customizable
Body materials	316L(custom titanium available)
