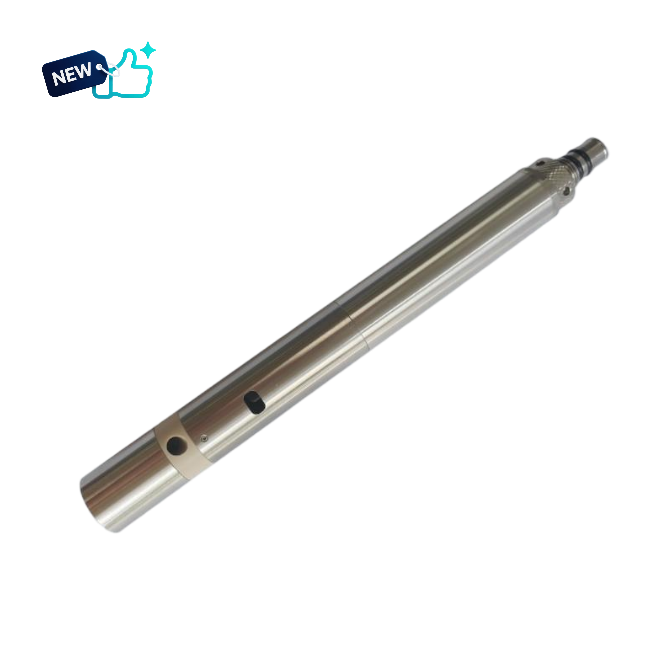

Y4007 Integrated CTD Sonde

  • Product Model:
  • Time: 2026-05-07 14:26:55
  • Product description:Yosemitech Y4007 CTD sonde is specially designed for long-term online monitoring, featuring an integrated and compact structure. It enables real-time online measurement of 4 key parameters: temperature, conductivity (salinity), and depth, providing accurate and efficient data support for coastal ecological research.

Overview

Yosemitech Y4007 CTD sonde is specially designed for long-term online monitoring, featuring an integrated and compact structure. It enables real-time online measurement of 4 key parameters: temperature, conductivity (salinity), and depth, providing accurate and efficient data support for coastal ecological research.
Adhering to the design concepts of miniaturization, high integration and high performance, the CTD sonde reduces size and weight while maintaining reliable performance. This not only ensures easy installation and deployment, but also supports on-site cleaning, saving both time and cost. Capable of operating stably under water pressure up to 200m, it can readily meet monitoring requirements in coastal waters, groundwater, lakes and reservoirs.

Features

- All-digital sensor, RS485 output, standard Modbus protocol;
- Long-term online water quality monitoring for 4 parameters: temperature, conductivity (salinity), and depth;
- Size and weight are reduced while ensuring performance, facilitating easy installation and deployment;
- Supports on-site cleaning and user calibration, with simple and convenient operation.

Specifications

Name

Y4007 CTD Sonde

Parameter

temperature

conductivity(salinity)

depth

Measuring range

﹣5 - 50℃

conductivity:0-100mS/cm

salinity:0-80ppt

0-200m

Accuracy

±0.05℃

±1% or 0.01mS/cm,
take the bigge one

±0.1% F.S.

Resolution

0.005℃

0.1μS/cm

0.01m

Measurement of depth

0-200m(0-20bar)

Power

0.2W(DC 9-24V,>500mA)

Interface

RS-485, MODBUSprotocol

Temperature range

﹣5 - 50℃

Size

Φ22mm*220.5mm

Shell material

316L+PEEK
