Product Description

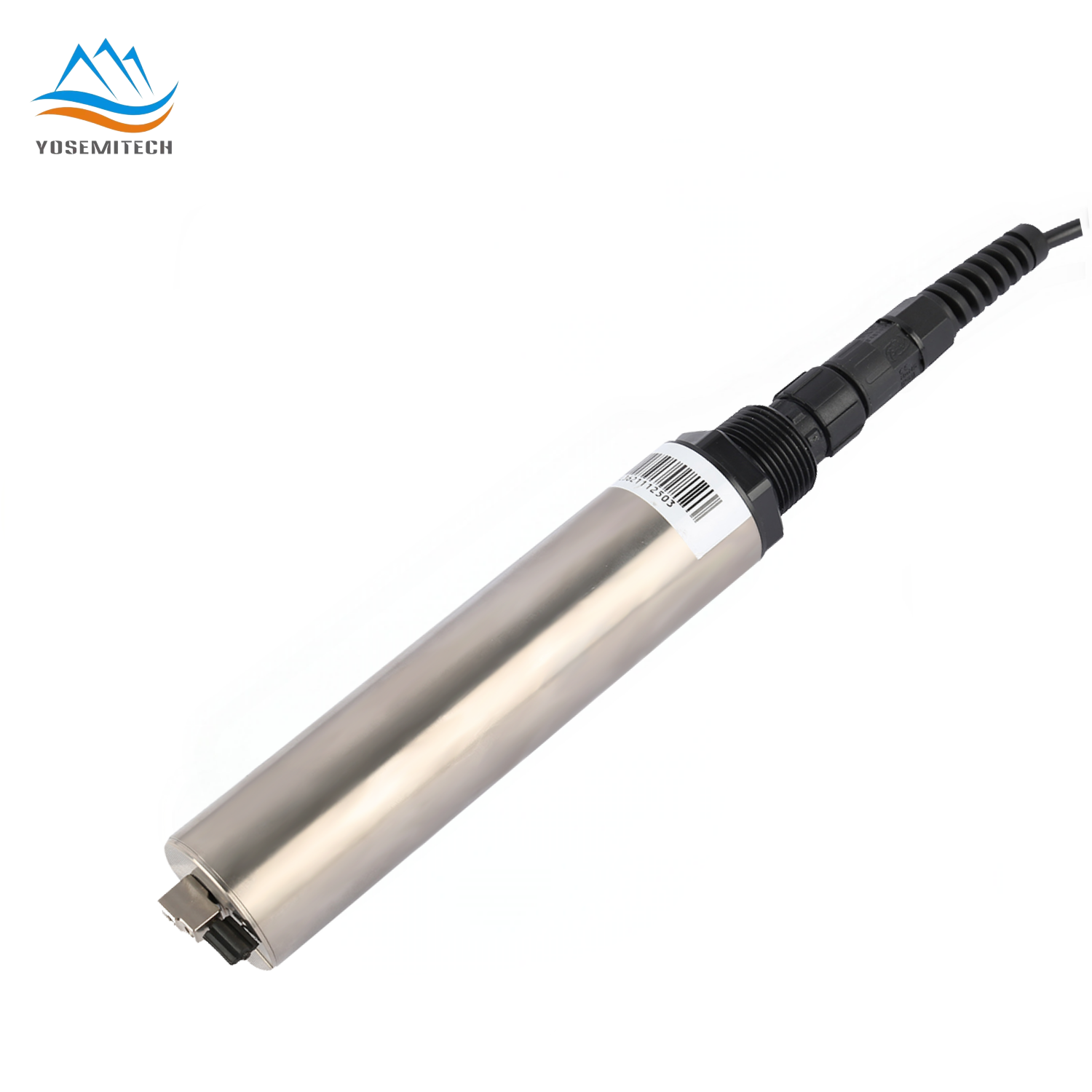

Yoesemitech Y512-A Total Suspended Solids (TSS) Sensor adopts the scattered light measurement principle, the use of near-infrared transmitter, so that the chroma interference is minimized, and it comes with temperature compensation, can achieve more accurate measurement. Our TSS Sensor doesn't need reagents, will not cause pollution, more environmental protection; Integrated self-cleaning brush, easy to install and use, even long-term online monitoring still has excellent stability.
Product Features
Digital Sensor, RS-485 output , Modbus protocol compatible;
With automatic cleaning brush, suitable for long-term online monitoring;
Adopt infrared scattered light monitoring technology, with good repeatability and stability;
Ex-factory has been accurately calibrated, can be directly installed and used;
Can be directly connected to Yosemitech’s controller, handheld meter, more convenient to use.
Product Application
Municipal Water Applications
1. Drinking Water Systems
Source Monitoring: Ensure the purity of drinking water by continuously tracking suspended solids.
UV Disinfection and Coagulation Efficiency: Optimize these processes for clearer and safer water.
Contaminant Management: Assess contaminant levels for enhanced removal strategies.
2. Wastewater Treatment
Influent and Effluent Monitoring: Continuously measure solids at entry and discharge points to maintain regulatory compliance.
Process Optimization: Refine chemical dosing and aeration for energy savings and improved treatment outcomes.
Industrial Water Applications
1. Wastewater Treatment
Loss Prevention: Track product losses to ensure resource efficiency.
Advanced Monitoring: Enhance treatment with detailed data on chemical and nutrient dosing, along with aeration control.
2. Process Water Systems
Contamination Detection in Cooling and Feedwater: Monitor feedwater and cooling systems to prevent impurities and maintain equipment longevity.
Water Reuse and Purification: Employ in ultrapure water systems to guarantee optimal reuse quality.
Product Size
Product Parameters
Name | TSS sensor |
Model | Y512-A |
Principle | scattering method |
Range | 0.5-4000mg/L or 0.5-10000mg/L |
Resolution | ±5% |
Resolution | 0.1mg/L |
Size | Φ36mm*198.2mm |
PowerRequirements | DC ~24V, curren<50mA (when cleaning＜100mA) |
Temperature range | 0~50℃ |
Housing IP Rating | IP68 |
Maximum pressure | 3 bar |
Sensor Interface | Supports RS-485, MODBUS protocol |
Installation | Submersible installation |
Probe cable length | 10m (default), customizable |
Calibration | one-point or two-pointscalibration |
Housing material | Titanium alloy |
