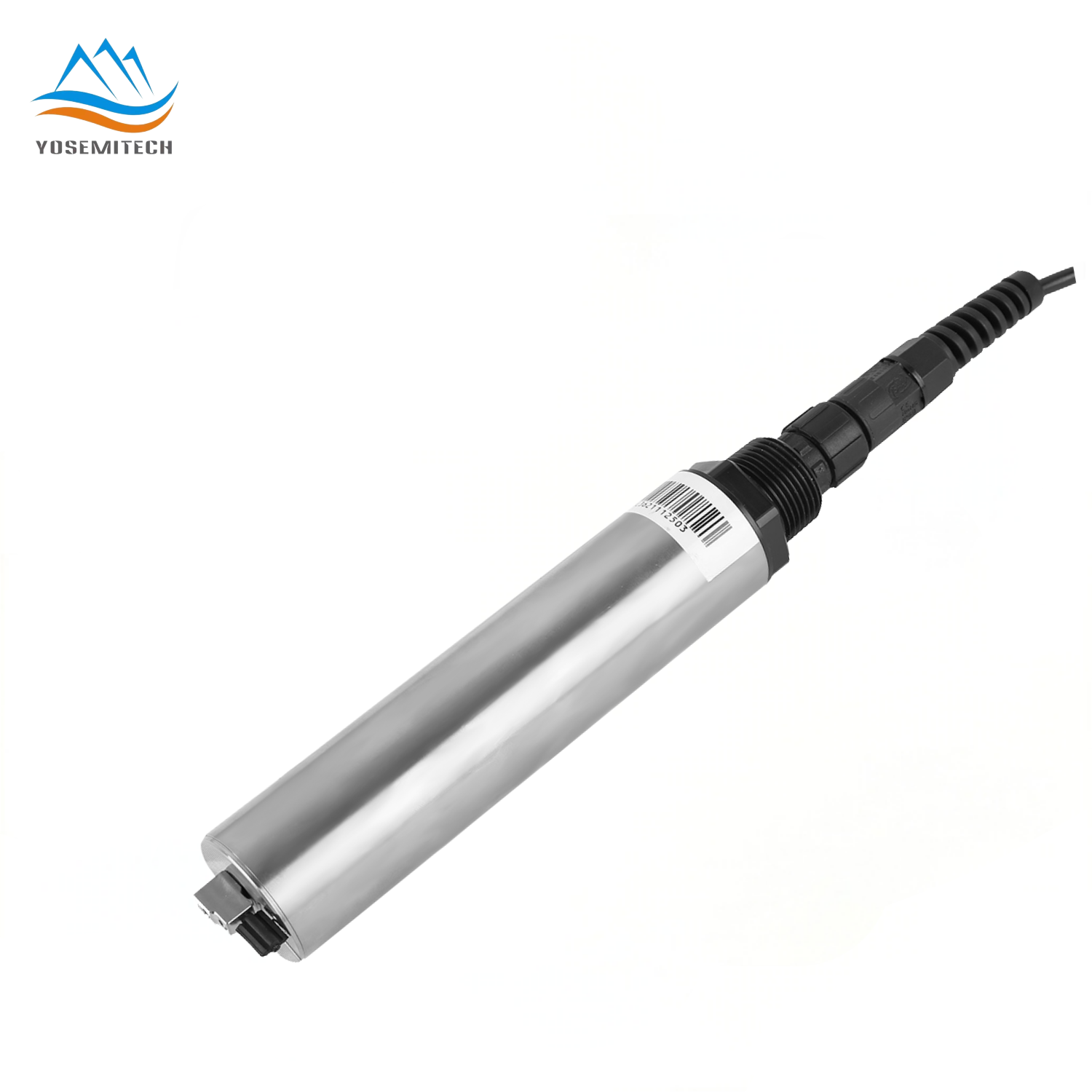

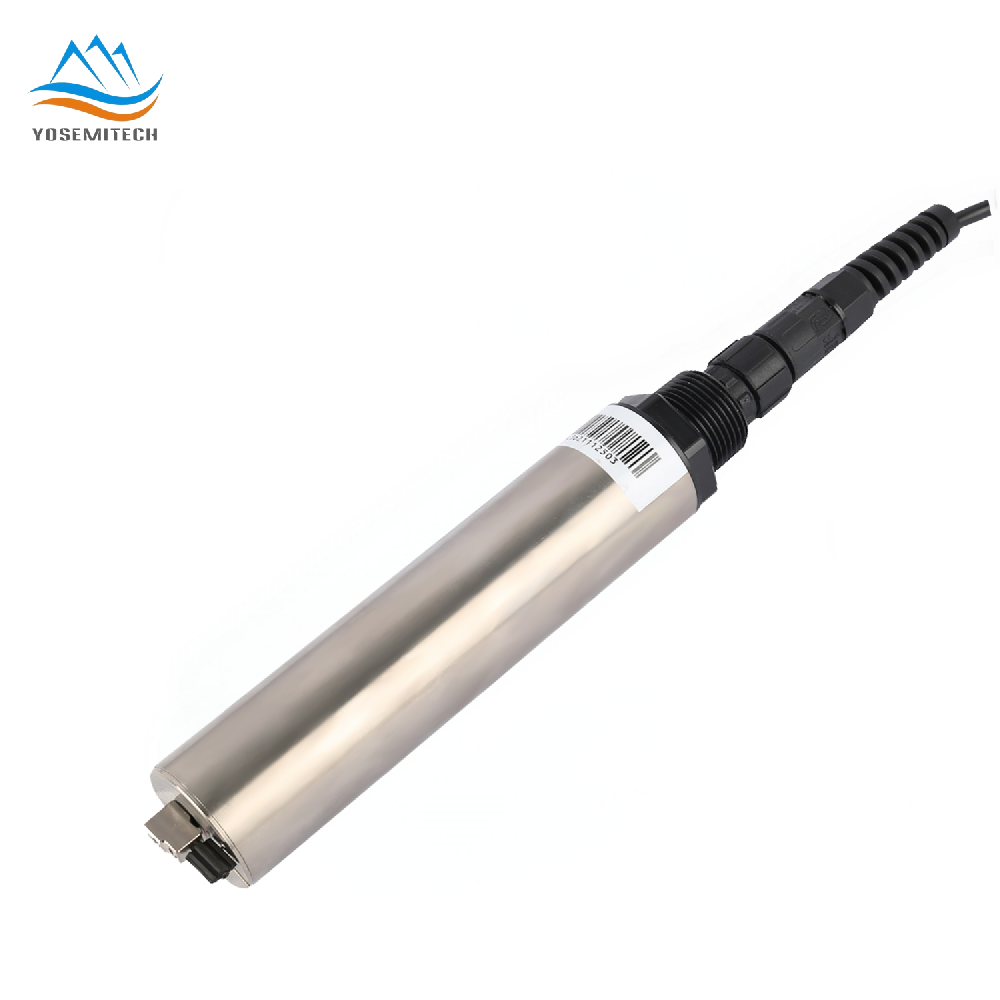

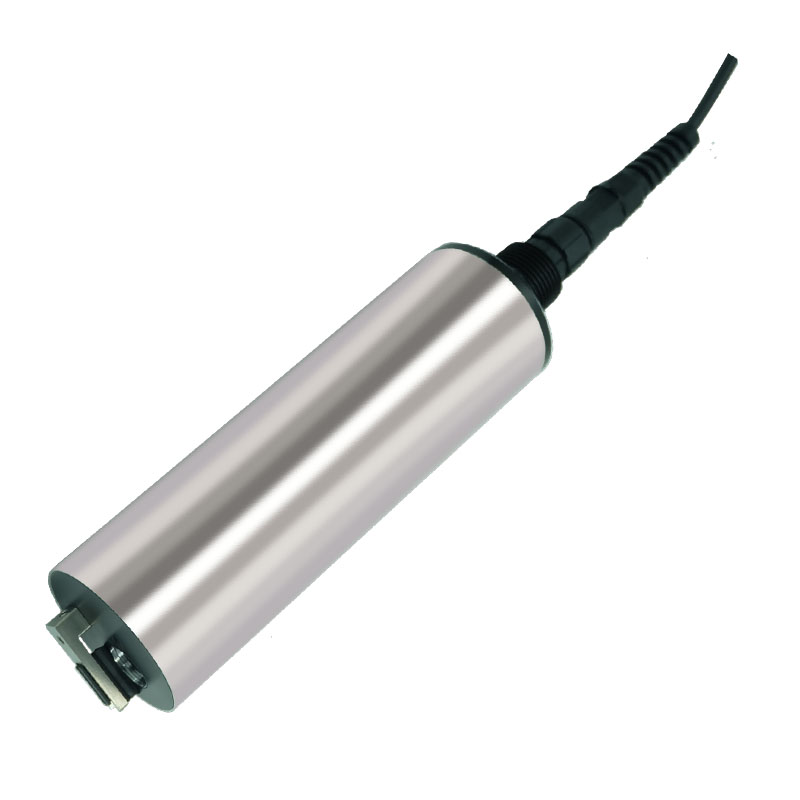

Y518-A Total Suspended Solids Probe

  • Product Model:Y518-A
  • Time: 2025-05-06 14:41:12
  • Product description:Yosemitech Y518-A Total Suspended Solids (TSS) Probe is based on the principle of combined infrared scattering method, and according to iso7027 infrared scattering light technology, the sludge concentration is determined without the influence of chroma.

Overview

Yosemitech Y518-A Total Suspended Solids (TSS) Probe is based on the principle of combined infrared scattering method, and according to iso7027 infrared scattering light technology, the sludge concentration is determined without the influence of chroma. Sensor without reagent, no pollution; More economical and environmentally friendly. The tss sensor is equipped with a self-cleaning brush to eliminate air bubbles and reduce the impact of contamination on measurements for longer maintenance cycles.

Features

-Digital sensor, RS485 output, MODBUS protocol.
-Infrared scattered light detection technology with reliable repeatability and stability.
-Sapphire custom optical windows and filters are resistant to ambient light and chromaticity.
-With self-cleaning brush to prevent the attachment of microorganisms and extend the maintenance cycle.
-Built-in calibration parameters for easy on-site use and secondary calibration.

Specifications

NameTSS Sensor(high range)
ModelY518-A
Measuring principleInfrared scattering method
Range0-50000mg/L
Accuracy±5% (depending on the homogeneity of the activated sludge)
Temperature range0-50℃
Maximum water depth30m
IP rangeIP68
InterfaceRS-485,MODBUS protocol
Power supply0.2W(non-wiping) 0.8W(wiping); DC 9-24V,>500mA
SizeΦ55mm*214mm
Cable length10 m (default), customizable
Calibration1-point or 2-point calibration
Sensor housing materialPOM+316L
