Y532-A Digital pH Probe and Sensor

Product Model：Y532-A
Time: 2023-03-21 16:26:31
Product description：Yosemitech Y532-A online pH Probe and Sensor, which uses a rugged industrial electrode and a built-in temperature sensor for automatic temperature compensation, and supports RS485 Modbus digital output. It is ideal for long-term online monitoring.
Online Message
Email: sales@yosemitech.com

Product Description

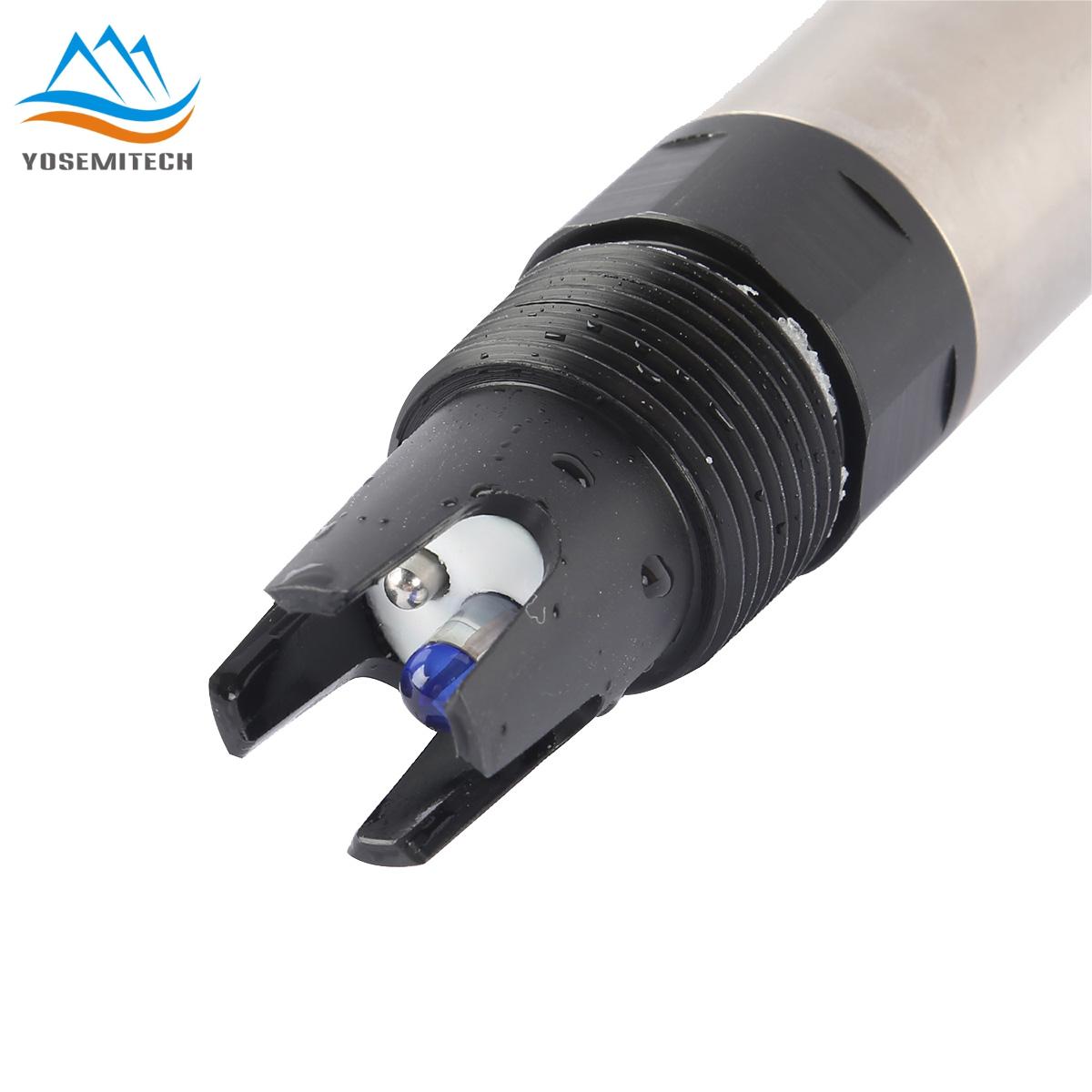

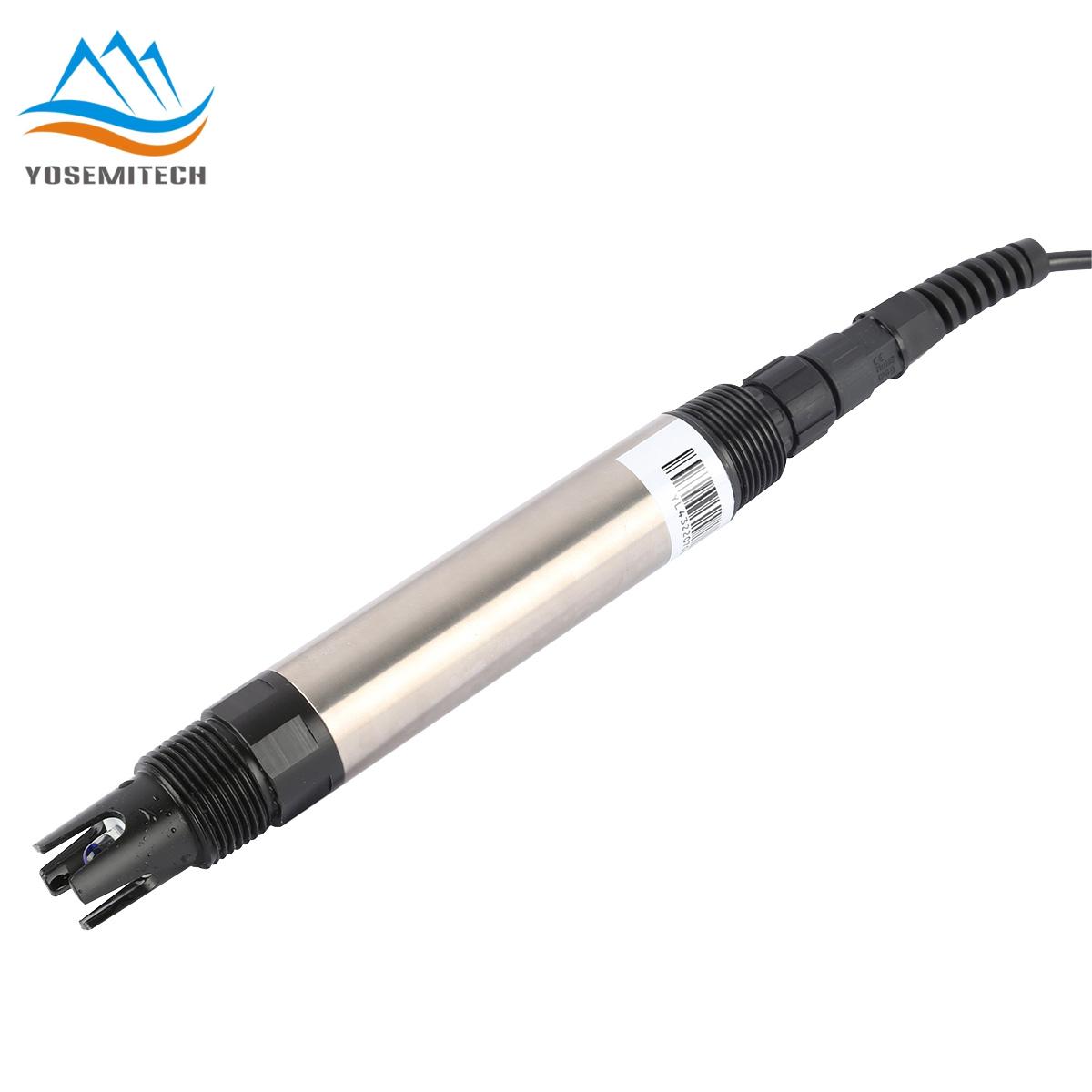

Yosemitech Y532-A Online pH Probe and Sensor adopts a long-lasting industrial electrode with a built-in temperature sensor for automatic temperature compensation, making it ideal for continuous monitoring. The ORP Meter adopts RS485 output and standard MODBUS protocol, enabling network integration and system deployment without controller. It is widely applicable in various fields, including water quality treatment, hydrological monitoring, wastewater treatment, swimming pools, industrial control, and biotechnology.

Product Features

Digital Sensor, RS485 Output, Modbus protocol compatible;

No electrolyte required, strong anti-interference, no frequent calibration

Built-in temperature sensor, automatic temperature compensation;

High performance industrial online electrode for online long time working;

Built-in calibration parameters, accurately calibrated before delivery, ready for direct installation and use

Product Size

digital pH sensor size.png

Product Parameters

Name	pH Sensor
Model	Y532-A
Range	0-14 pH
Accuracy	±0.02 pH
Resolution	0.01
Housing IP Rating	IP68
Maximum Pressure	3bar
Temperature Range	0 ~ 50℃
Sensor Interface	Supports RS-485, MODBUS protocol
Power Requirements	DC 12~24V，curren≥1A
Size	Φ28mm*194mm
Probe cable length	10m (default), customizable
Body Material	POM+Ti
Calibration	Two-points or three-points calibration
