pH / ORP

Y533-A Digital ORP Probe and Sensor

Product Model：Y533-A
Time: 2023-03-21 16:34:50
Product description：Yosemitech Y533-A online ORP Probe and Sensor, which uses a rugged industrial electrode and a built-in temperature sensor for automatic temperature compensation, and supports RS485 Modbus digital output. Suitable for long time online monitoring.
Online Message
Email: sales@yosemitech.com

Product Description

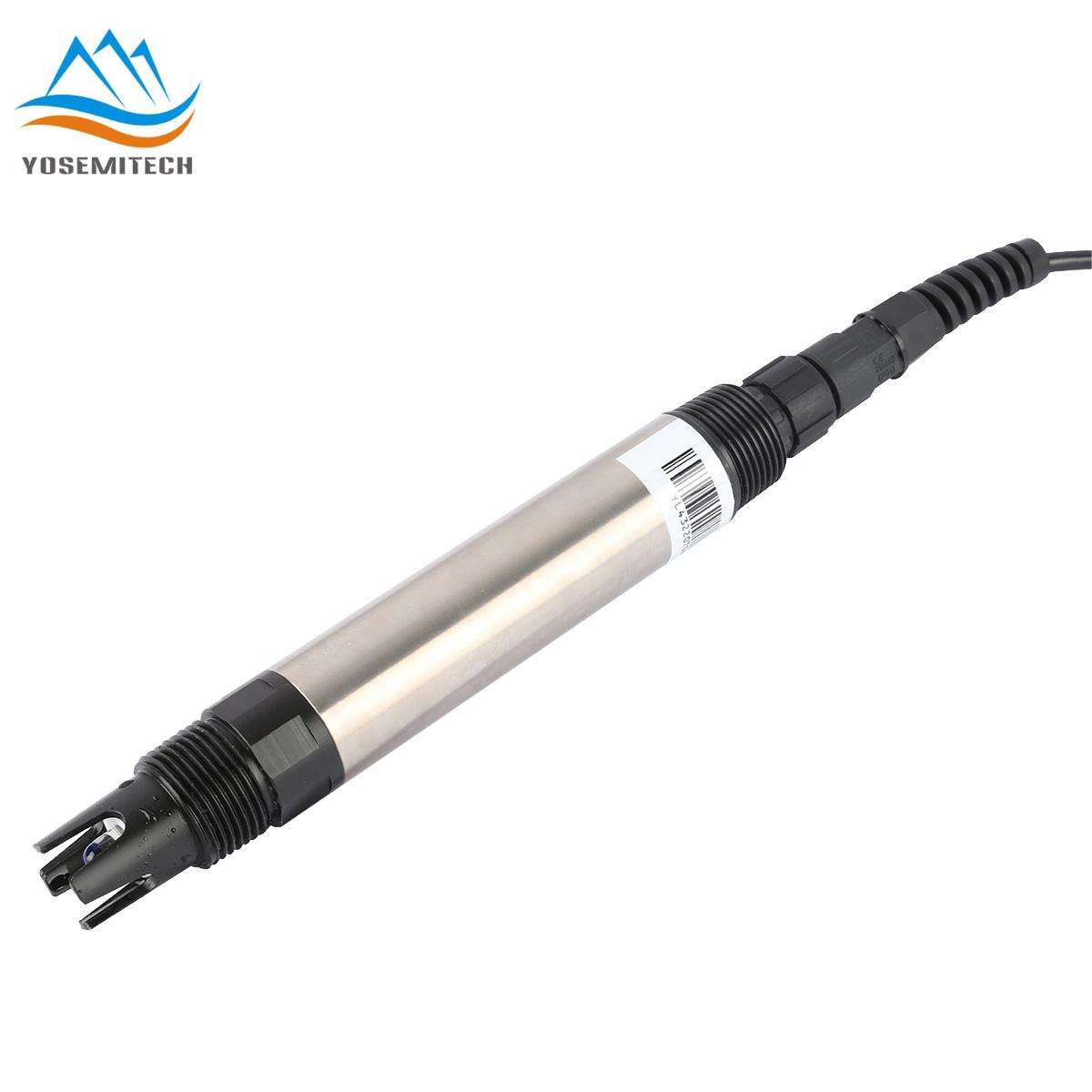

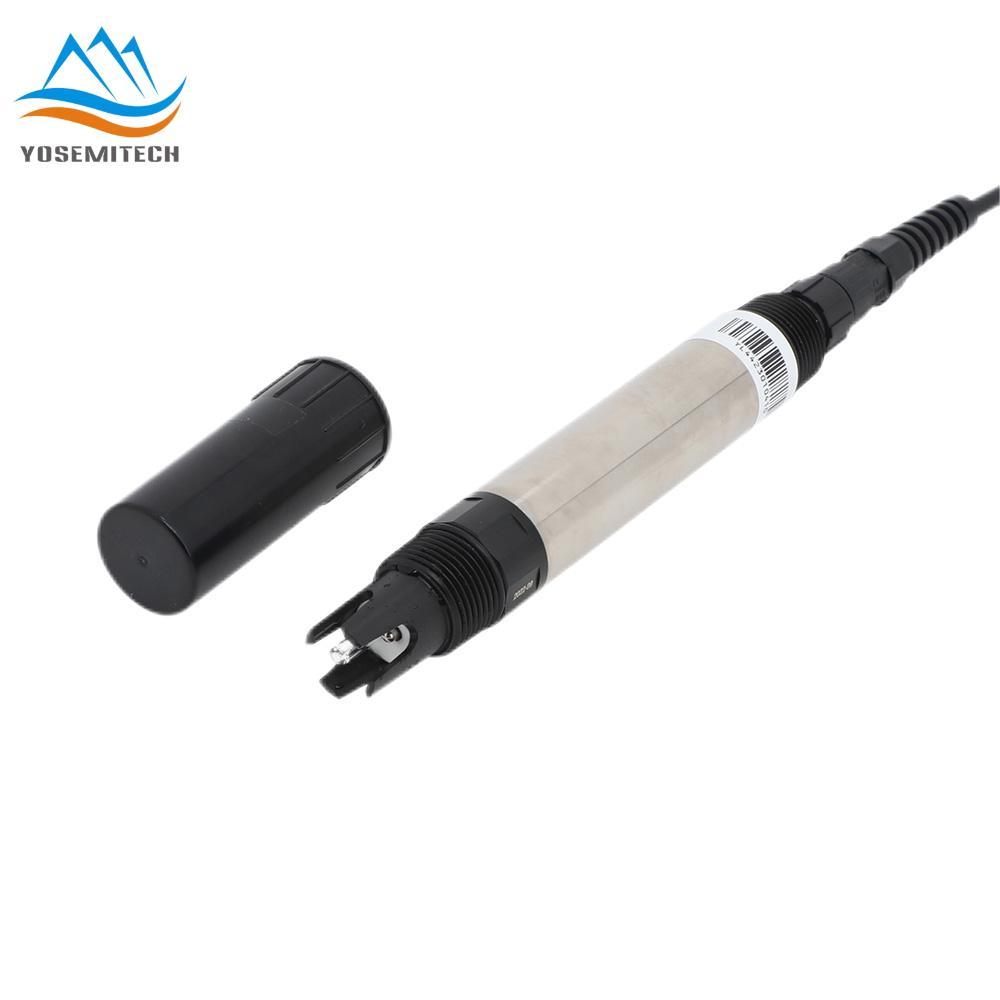

Yosemitech Y533-A online ORP Probe and Sensor, which uses a rugged industrial electrode and a built-in temperature sensor for automatic temperature compensation, and supports RS485 Modbus digital output. It is ideal for long-term online monitoring. Widely used in water quality treatment, hydrological monitoring, wastewater treatment, chemical industry, biology and other fields.

Y533-A digital ORP sensor (4).jpg

Product Features

Digital Sensor, RS-485 output , Modbus protocol compatible;

No electrolyte required, strong anti-interference, no need for frequent calibration;

Built-in temperature sensor, automatic temperature compensation;

Using high performance industrial online electrode, can work for a long time;

Built-in calibration parameters, accurate calibration before delivery, ready for direct installation and use

Product Size

ORP sensor size.png

Product Parameters

Name	ORP Meter
Model	Y533-A
Range	-999~999mV
Accuracy	±20mV
Resolution	1mV
Housing IP Rating	IP68
Maximum Pressure	3bar
Temperature Range	0 ~ 50℃
Sensor Interface	Supports RS-485, MODBUS protocol
Power Requirements	DC 12~24V，curren≥1A
Size	Φ28mm*194mm
Probe cable length	10m (default), customizable
Body Material	POM+Ti
Calibration	one-point calibration
