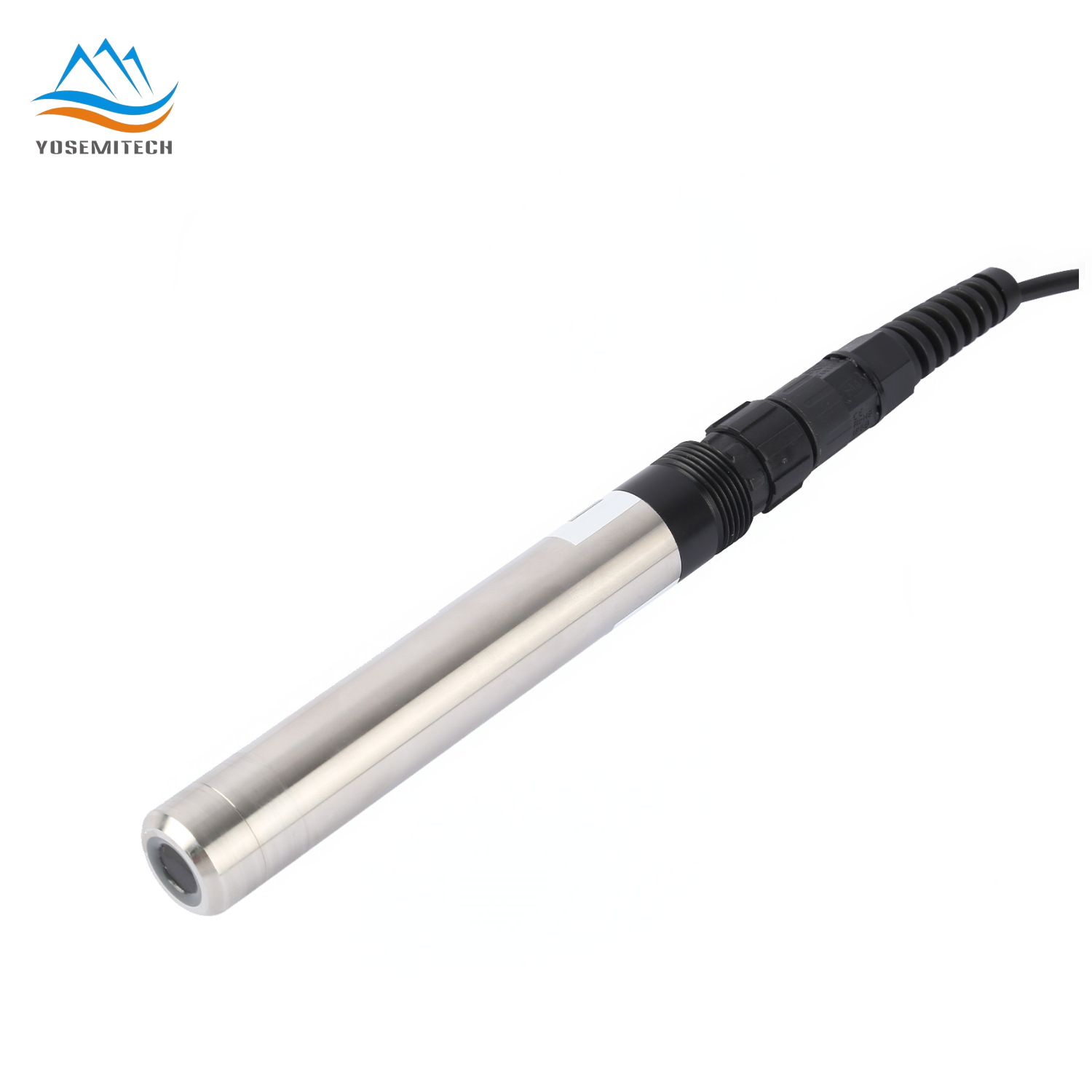

Y505-A Dissolved Oxygen Sensors for Aquaculture

  • Product Model:Y505-A
  • Time: 2019-09-18 03:58:40
  • Product description:Yosemitech ODO series Optical Do Sensor for aquaculture is specially designed for aquaculture applications. With built-in temperature sensor and robust RS485 digital signal output, the sensor can be seamlessly connected to our online controller.

Overview

Dissolved Oxygen(DO)monitoring is the most critical water quality parameter in aquaculture. Yosemitech ODO series Optical Do Sensor for aquaculture is specially designed for aquaculture applications. With built-in temperature sensor and robust RS485 digital signal output, this DO Probe can be seamlessly connected to our online controller. The dissolved oxygen sensor can be easily integrated into wireless sensor network and automation controls.

Features

Digital Sensor, RS485 output, MODBUS Protocol;
No membrane, No electrolyte, No chemical interference, No frequent calibration required;
No Oxygen Consumption, No Flow Dependent;
Specially Designed for Aquaculture Application;
Built-in Temperature Sensor, Automatic Temperature Compensation;
Built-in Calibration Parameters, Accurately Calibrated Before Delivery, Ready for Direct Installation and Use.

Specifications

Name

Dissolved oxygen sensor

Model

Y505-A

range

0-20mg/L or 0-200 % saturation

Measurement accuracy

±3%

Response time

60s

Temperature sensors

NTC

Temperature range

0 ~ 50℃(non-freezing)

Temperature accuracy

±0.5℃

Sensor interfaces

RS-485, MODBUS protocol

Power Requirements

DC 5~12V, current <50mA

Construction

M22*1.5(optionally convertible to NPT3/4 thread),submersible installation

Sensor size

Φ22mm*152.7mm

Probe cable length

10m (default), customizable

Calibration

One point or two points calibration

Fluorescent cap life

1 Year(at normal use)

Body materials

316L stainless steel (default), titanium optional
