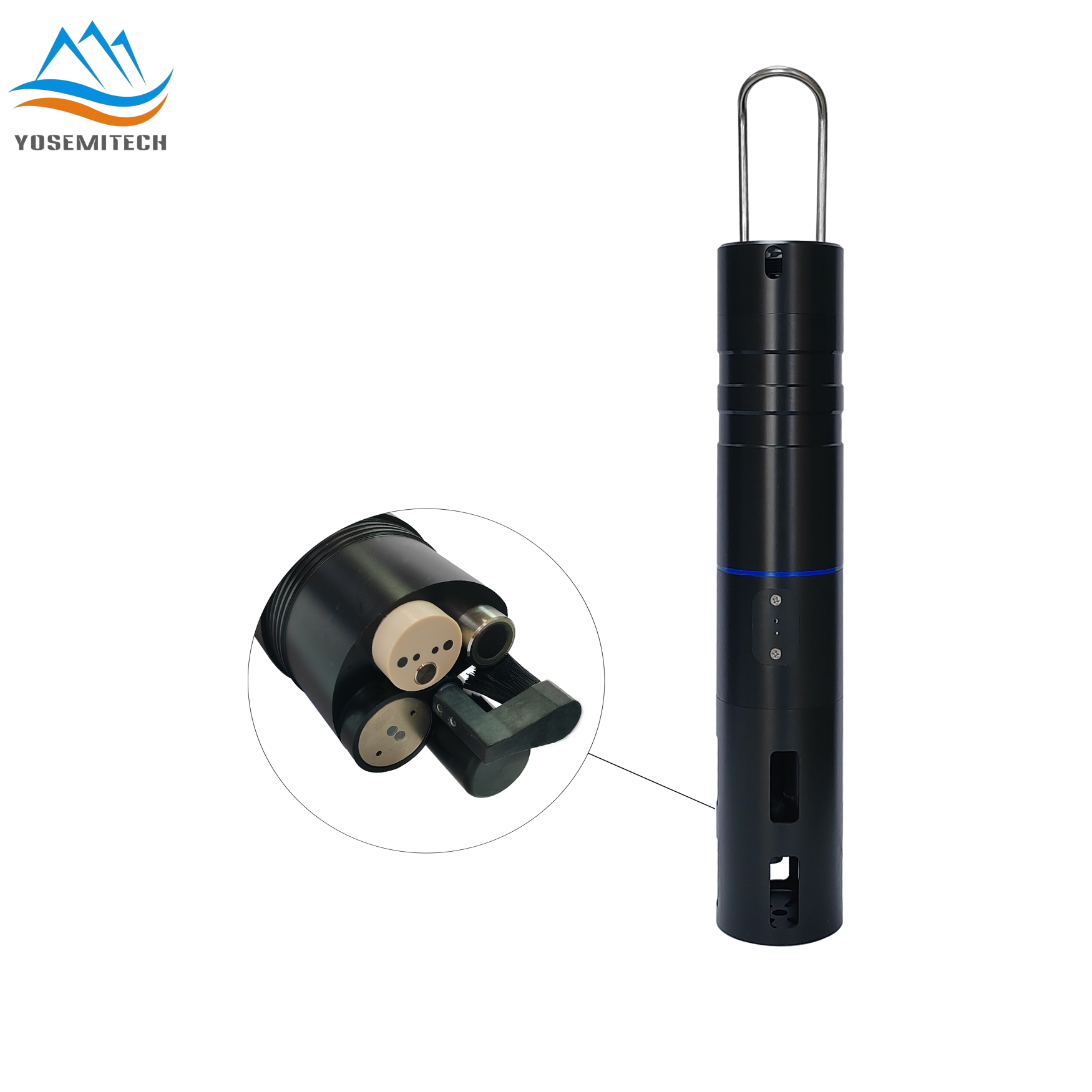

Y4002 Integrated Multi-parameter Water Quality Sonde

  • Product Model:
  • Time: 2026-04-28 13:07:23
  • Product description:Yosemitech Y4002 multiparameter water quality sonde features a compact, fully integrated design that enables concurrent real-time measurement of seven key water quality parameters. Its integrated automatic cleaning brush actively mitigates sensor fouling, dislodges entrapped air bubbles, and suppresses biofilm formation—thereby preserving measurement integrity and ensuring long-term operational stability.

Overview

Yosemitech Y4002 multiparameter water quality sonde features a compact, fully integrated design that enables concurrent real-time measurement of seven key water quality parameters. Its integrated automatic cleaning brush actively mitigates sensor fouling, dislodges entrapped air bubbles, and suppresses biofilm formation—thereby preserving measurement integrity and ensuring long-term operational stability. The sonde is validated for deployment across diverse monitoring environments, including aquaculture facilities, municipal and industrial wastewater treatment plants, surface water bodies (e.g., rivers and lakes), and groundwater wells. Supported by extensive field validation and iterative engineering enhancements, the system delivers exceptional long-term reliability and robust performance under continuous unattended operation.

Features

- Digital sensor, RS485 output, standard Modbus protocol;
- Supports on-site calibration, adapting to various water quality conditions and further improving measurement accuracy;
- Can be directly immersed in the water for all-weather, uninterrupted online monitoring, simplifying system configuration;
- Equipped with an automatic cleaning system to effectively prevent biofouling and sediment deposition, reducing maintenance requirements and manual cleaning frequency;
- Integrated compact design enables simultaneous monitoring of 7 parameters: DO, pH, conductivity, salinity, turbidity, depth, and temp.

Specifications

NameY4002 Integrated Multi-parameter Sonde
Measuring depth0-20m
Main unitcan monitor up to 7 parameters, 1 central cleaning brush.
SizeΦ65mm*430mm (with protective cover)
Calibration dataCalibration data is stored in the probe, enabling rapid calibration of the entire system.
Output1 channel RS-485 output, MODBUS protocol
Brush controlThe default cleaning frequency is once every 30 minutes.
The cleaning interval can be set.
Full load power consumption0.8W(non-wiping), 2W(wiping)
Power supplyDC 12-24V, ≥1A
IP rangeIP68
Cable lengthWith waterproof connectors, 10m (default),  customizable
MaterialPOM
ProbeMeasuring rangeAccuracy
DO0-50mg/L or 0-500% Saturation

0-20mg/L: ±3% or ±0.5mg/L

 >20mg/L: ±5% or ±1mg/L

Turbidity0-1000NTU or 0-4000NTU±5% or 0.3NTU,
(take the bigger one)
CT           (Salinity)

Conductivity: 0-200mS/cm

 (0-2mS/cm, 2-20mS/cm, 20-200mS/cm)

±2% or 0.02mS/cm,
(take the bigger one)
Salinity:0-175ppt±2ppt
pH0-14 pH±0.1 pH
Depth0-20m<5‰F.S.
Temp﹣5-50℃±0.2℃
