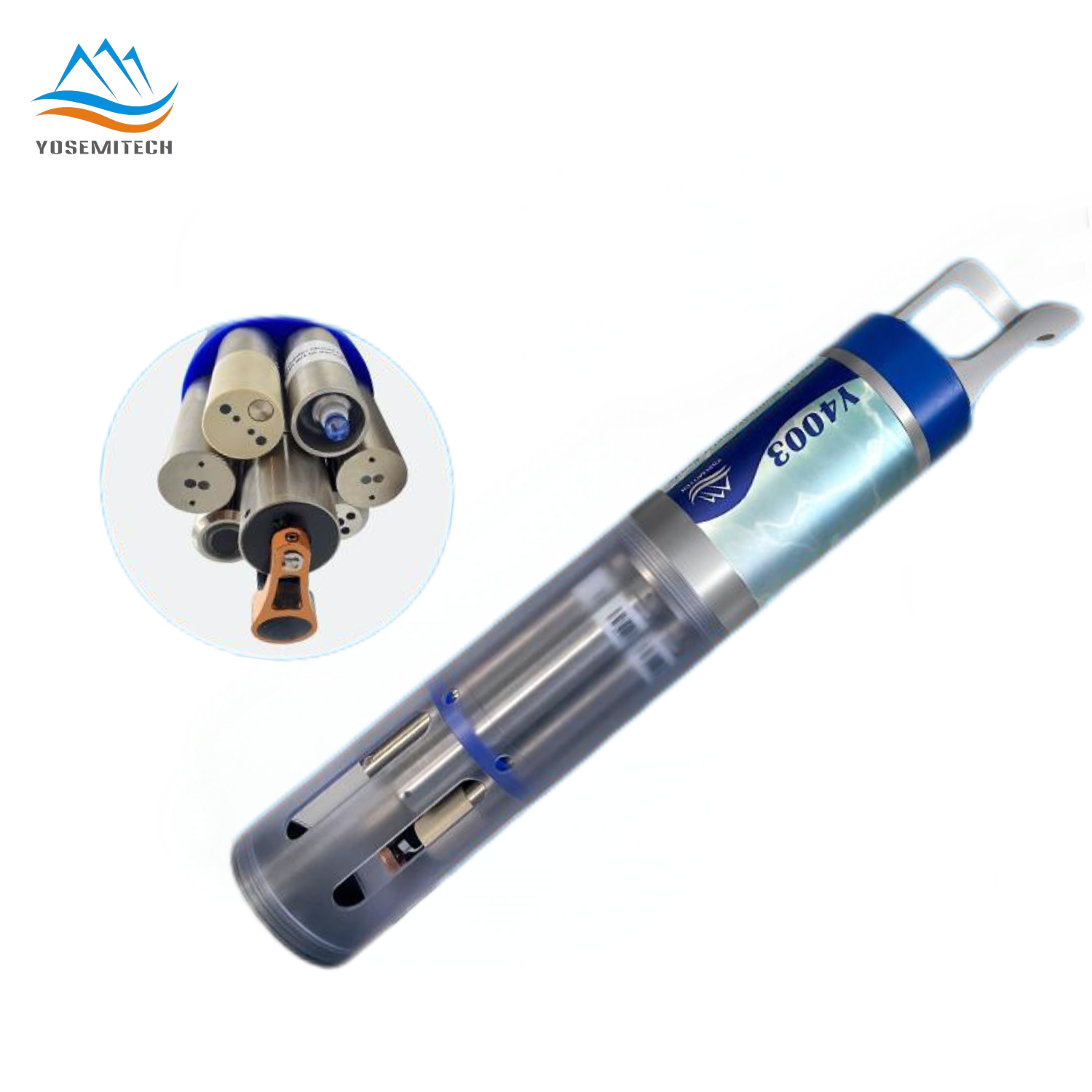

Y4003 Online Deep Water Multi-parameter Sensor

Product Model：Y4003
Time: 2025-02-19 11:32:25
Product description：Yosemitech’s Y4003 deep water multi-parameter sensor is designed with a sturdy and pressure-resistant structure and a self-developed titanium alloy watertight connector, and is specially tailored for deep water/well, ocean and other working conditions.
Online Message
Email: sales@yosemitech.com

Product Description

Yosemitech’s Y4003 deep water multi-parameter sensor is designed with a sturdy and pressure-resistant structure and a self-developed titanium alloy watertight connector, and is specially tailored for deep water/well, ocean and other working conditions. Up to 6 sensors can be connected at the same time, and Yosemitech dissolved oxygen meter, pH/ORP, conductivity (salinity), turbidity, chlorophyll, blue-green algae, and oil in water sensors can be freely selected. The sensor probes are all made of titanium alloy and have good corrosion resistance.

The Y4003 multi-parameter machine with a cleaning brush can effectively clean the measuring end face, remove bubbles, and prevent microbial attachment. It can withstand up to 20 bar water pressure and work stably, and can handle the monitoring needs of various water environment conditions such as deep water lakes, ocean monitoring, underground drilling, and harsh wastewater effectively.

Product Features

1. RS485 output, standard MODBUS protocol, convenient for connecting to data acquisition platform and automatic water quality monitoring station.

2. The main unit is equipped with 6 sensor interfaces of the same specification and 1 cleaning brush center interface, allowing for flexible connection to Yosemitech's probes.

3. The main unit can be connected to up to 6 probes, which can freely choose sensors such as dissolved oxygen, conductivity (salinity), turbidity, pH, ORP, chlorophyll, blue-green algae, and oil in water.

4. Equipped with a self-cleaning brush, this system conducts regular cleaning at set intervals to eliminate errors caused by bubbles or contamination. It is suitable for long-term unattended online monitoring.

5. All calibration parameters are stored in independent sensors, and each sensor can be replaced, calibrated and maintained on-site.

6. The multi-parameter whole machine is designed to withstand water pressure of up to 20 bar and operate reliably. It is specifically tailored for use in deepwater wells, oceans, and other challenging working conditions.　　

Product Parameters

Y4003
Model	Y4003
Measuring Depth	0-200m
Main Body Information	Support up to 6 sensor access, 1 central cleaning brush, probe and cleaning brush can be disassembled, free combination
Size	Φ84mm*476mm
Operating Temperature	﹣5-50℃
Calibration Data	Calibration data is stored in the probe, which can be disassembled for direct calibration
Output	RS-485 output，MODBUS protocol
Brush Control	The default cleaning time is 30 minutes, the cleaning interval can be setted
Full Load Power	0.8W（no wiping）,2W（wiping）
Power Supply	DC 12-24V、≥1A
IP Range	IP68
Weight	3.25kg (main unit + 6 sensors)
Material	PVC, titanium alloy, anti-fouling copper
Status Alert	Power supply abnormality alarm, communication abnormality alarm, cleaning brush abnormality alarm
Cable Length	With waterproof connector, 50m (default), customizable

Sensor	Principle	Measurement Range	Accuracy	Resolution	Material	Max Depth
DO	Fluorescence method	0-20mg/L or 0-200% Saturation	±1% or ±0.3mg/L, Max	0.01mg/L	Titanium alloy	200m
Turbidity	90° Scattered light	0-1000NTU(selectable 0-4000NTU)	±5% or 0.3NTU, Max	0.01NTU	Titanium alloy	200m
Electrical conductivity (salinity)	Four-electrode	CT：0-200mS/cm	±1% or 0.01mS/cm, Max	0.01mS/cm	Titanium alloy, PEEK	200m
		Salinity：0-175ppt	±1ppt
		TDS：0-128000mg/L	/
Oil-in-water	Ultraviolet fluorescence method	0-50ppm（selectable 0-150ppm）	Linearity：R²＞0.999	0.01ppm	Titanium alloy	200m
pH	Glass electrode method	0-14 pH	±0.02 pH	0.01	POM, titanium alloy	100m
ORP	Platinum electrode method	﹣1999~1999mV	±20mV	1mV	POM, titanium alloy	100m
Chlorophyll	Fluorescence method	0-500μg/L	±5% or 0.5μg/L, Max	0.01μg/L	Titanium alloy	200m
Blue-green Algae	Fluorescence method	0-300000cells/mL (selectable 0-2 million）	Linearity：R²＞0.999	1cells/mL	Titanium alloy	200m
Depth	Differential pressure	0m-2m…200m H2O	＜0.1% F.S.	0.01m	Titanium alloy	200m
