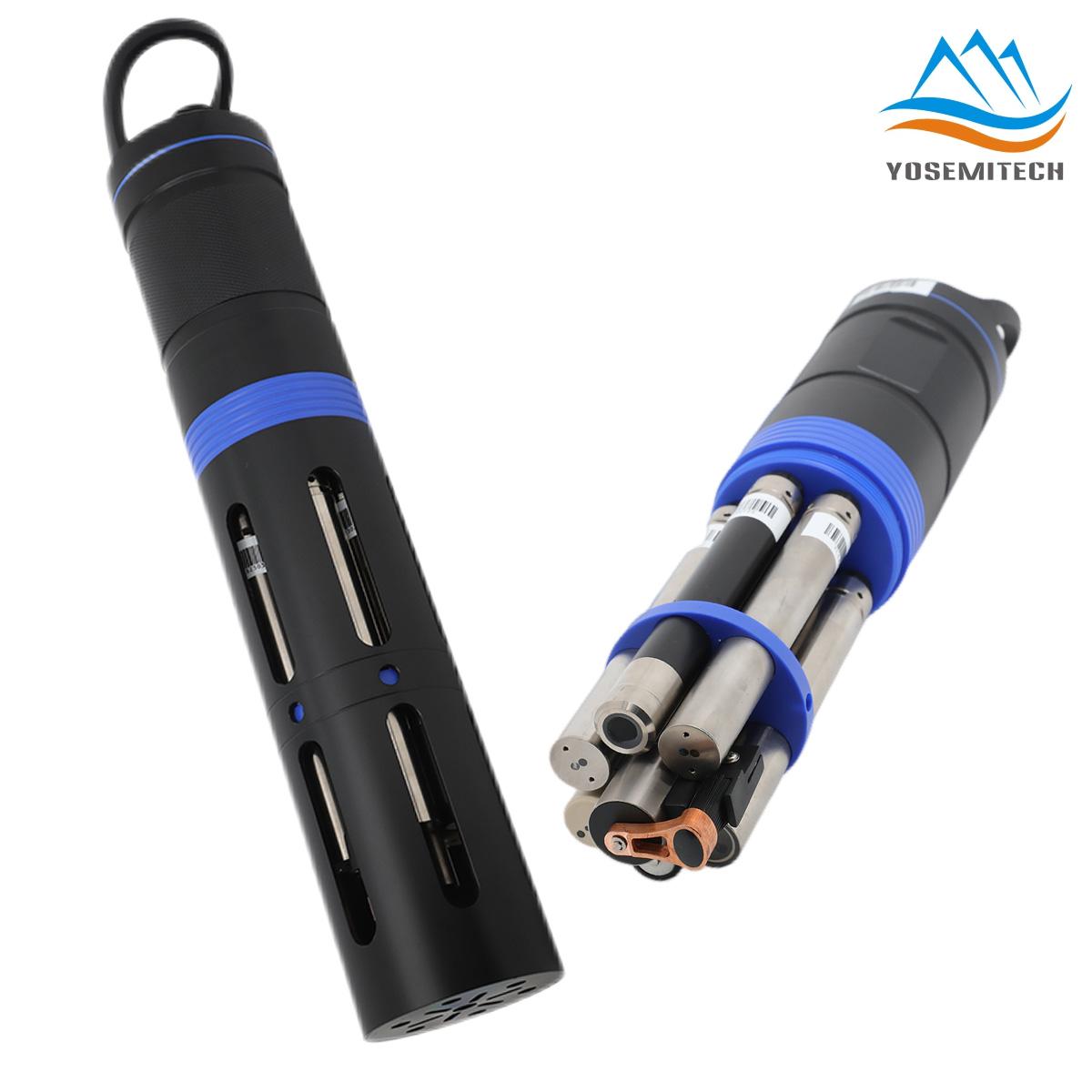

Yosemitech Y4000 Multi-parameter Water Quality Sensor is one of the most comprehensive water quality monitoring product for dissolved oxygen, conductivity, turbidity, pH, chlorophyll, blue green algae, oil-in-water and temperature measurement in a single platform. The integrated wiper system can effectively prevent impacts from biofouling, air bubbles, debris, etc. This online multi-parameter sensor is an ideal system to continuously deliver high quality data for long term monitoring applications. Widely used in sewage treatment, surface water, ocean and groundwater monitoring, etc.
-Easy system integration, and hassle free installation.
-RS485 Output, Standard MODBUS Protocol, conveniently connects data collection platform and water quality automatic monitoring station.
-Equipped with automatic cleaning device, automatic cleaning at regular intervals to eliminate probe errors caused.
-IP68 water proof connectors.
-Capable of measuring 7 parameters.

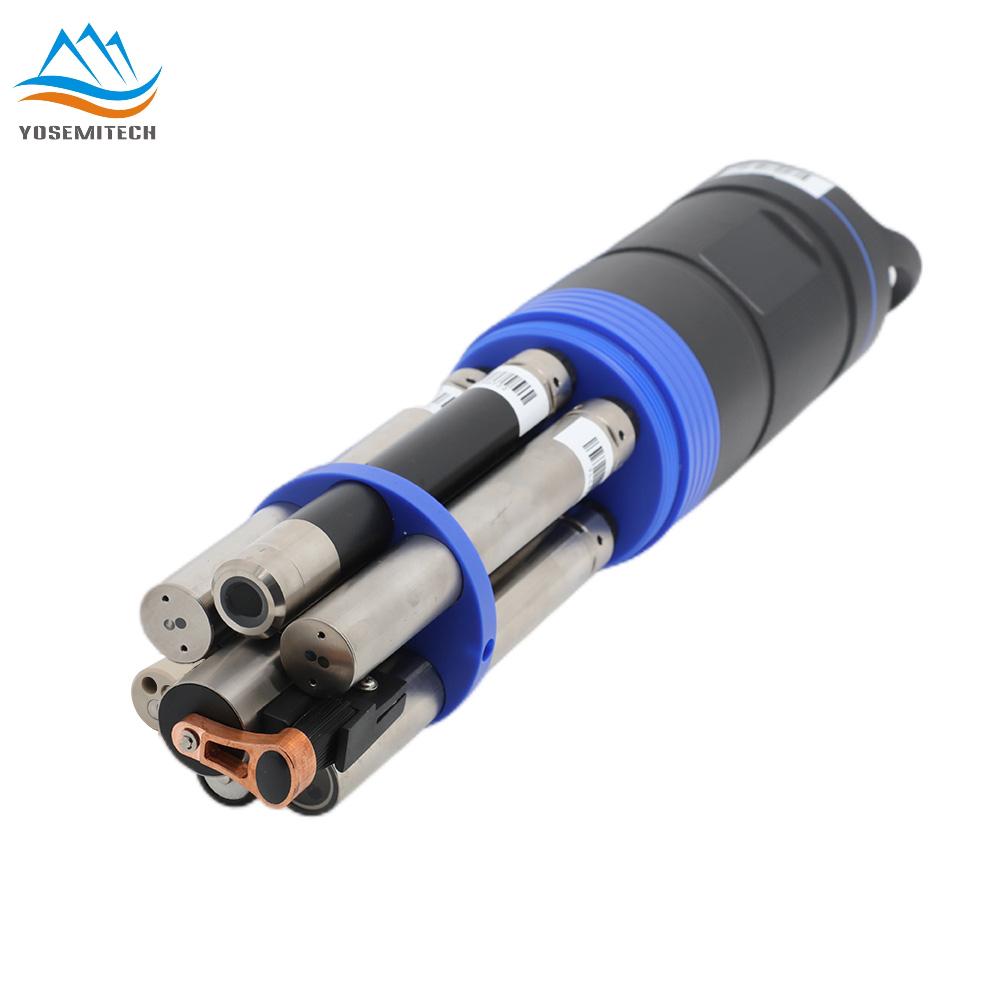

-The main body can be connected to up to 6 probes. Selection of any 6 digital probes: pH, ORP, CT, Tur, ODO, BGA, Chl, OIW.
Name | Online Multiparameter Sonde |
Model | Y4000 |
Measuring depth | 0-30m |
Main body information | connect up to 6 probes, 1 central cleaning brush |
Size | Φ84mm*476mm |
IP range | IP 68 |
Operating temperature | 0-50℃ |
Calibration data | The calibration data is stored within the probe. The probe can be removed for direct calibration. |
Output | 1 channel RS-485 output, MODBUS protocol |
Brush control | The default cleaning frequency is once every 30 minutes. The cleaning interval can be set. |
Full load power consumption | 0.8W(non-wiping), 2W(wiping) |
Power supply | Whole machine: DC 12-24V, ≥1A; Single probe: 9-24V, ≥1A |
IP range | IP68 |
Weight | 2.3kg(main body+6 probes) |
Status alert | Power supply abnormal alarm, communication abnormal alarm, cleaning brush abnormal alarm |
Cable length | With waterproof connectors, 10m (default), customizable |
Material | POM, Ti, anti-fouling copper |
Sensor | Model | Range | Accuracy |
DO | Y504-B | 0-50mg/L or 0-500%saturation | 0-20mg/L:±1%or±0.2mg/L >20mg/L:±5%or±0.6mg/L |
TUR | Y510-C | 0-1000NTU or 0-4000NTU | ±5%or0.3NTU,take the bigger one |
Conductivity Salinity | Y523-B | conductivity:0-200mS/cm (0-2mS/cm、2-20mS/cm、20-200mS/cm) Salinity: 0-175ppt TDS: 0-128000mg/L | ±1%or0.01mS/cm,take the bigger one |
±1ppt | |||
/ | |||
OIW | Y616-C | 0-50ppm or 0-150ppm | Linearity:R²>0.999 |
pH | Y532-B | 0-14 pH | ±0.02 pH |
ORP | Y533-B | ﹣1999-1999mV | ±20mV |
CHL | Y515-B | 0-500μg/L | ±5% or 0.5μg/L,take the bigger one |
BGA | Y613-C | 0 - 300,000 cells/mL (can be set at 0 - 2,000,000 cells/mL) | Linearity:R²>0.999 |
Depth | Y700-B | 0m-2m...100m | <0.1% FS |
Yosemitech Multi-Parameter Water Quality Sensor is used in wastewater pools in printing and dyeing plants
