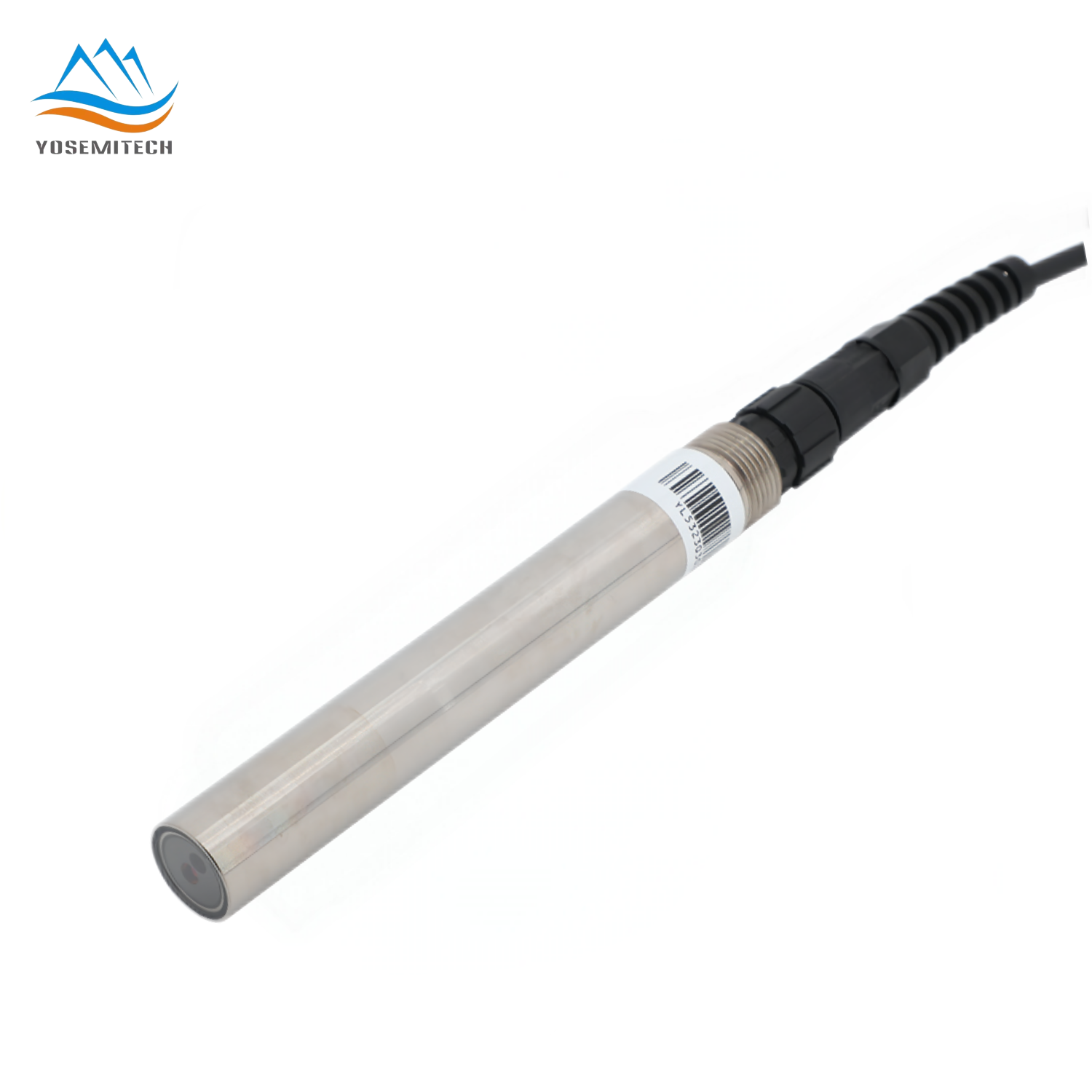

Y616-B Oil-in-water Sensor (Crude Oil)

  • Product Model:Y616-B
  • Time: 2022-12-02 13:24:58
  • Product description:Yoesemitech’s Y616-B online Oil in Water Sensor use the principle of ultraviolet fluorescence technique with high sensitivity. Compared with other methods, the fluorescence method is proven to be more efficient, fast and repeatable. which can be used to detect solubility and emulsification. It is suitable for oil field monitoring, industrial circulating water,condensate water, wastewater treatment, surface water station and many other water quality measurement scenes.

Overview

Yoesemitech Y616-B online Oil in Water Sensor adopts the principle of ultraviolet fluorescence technique with high sensitivity. Compared with other methods, the fluorescence method is proven to be more efficient, fast and repeatable, which can be used to detect solubility and emulsification. It is suitable for oil field monitoring, industrial circulating water,condensate water, wastewater treatment, surface water station and many other water quality measurement scenes.

Features

-RS - 485 output, Modbus protocol compatible.
-With automatic cleaning wiper, eliminate influence of oil on the measurement.
-Reduce contamination without interference by the light interference from the outside world.
-Not affected by particles of suspended matter in water.

Specifications

NameOil in Water Sensor
ModelY616-B
Measuring principleUltraviolet fluorescence method
Range0-50ppm or 0-150ppm
LinearityR²>0.999
Resolution0.01ppm
Temperature range0-50℃
Maximum water depth60m
IP rangeIP68
InterfaceRS-485,MODBUS protocol
Power supply0.2W(DC 6-24V,>50mA)
SizeΦ22mm*175.5mm
Cable length10 m (default), customizable
Calibration0-point or 1-point or 2-point calibration
Sensor housing materialTi
