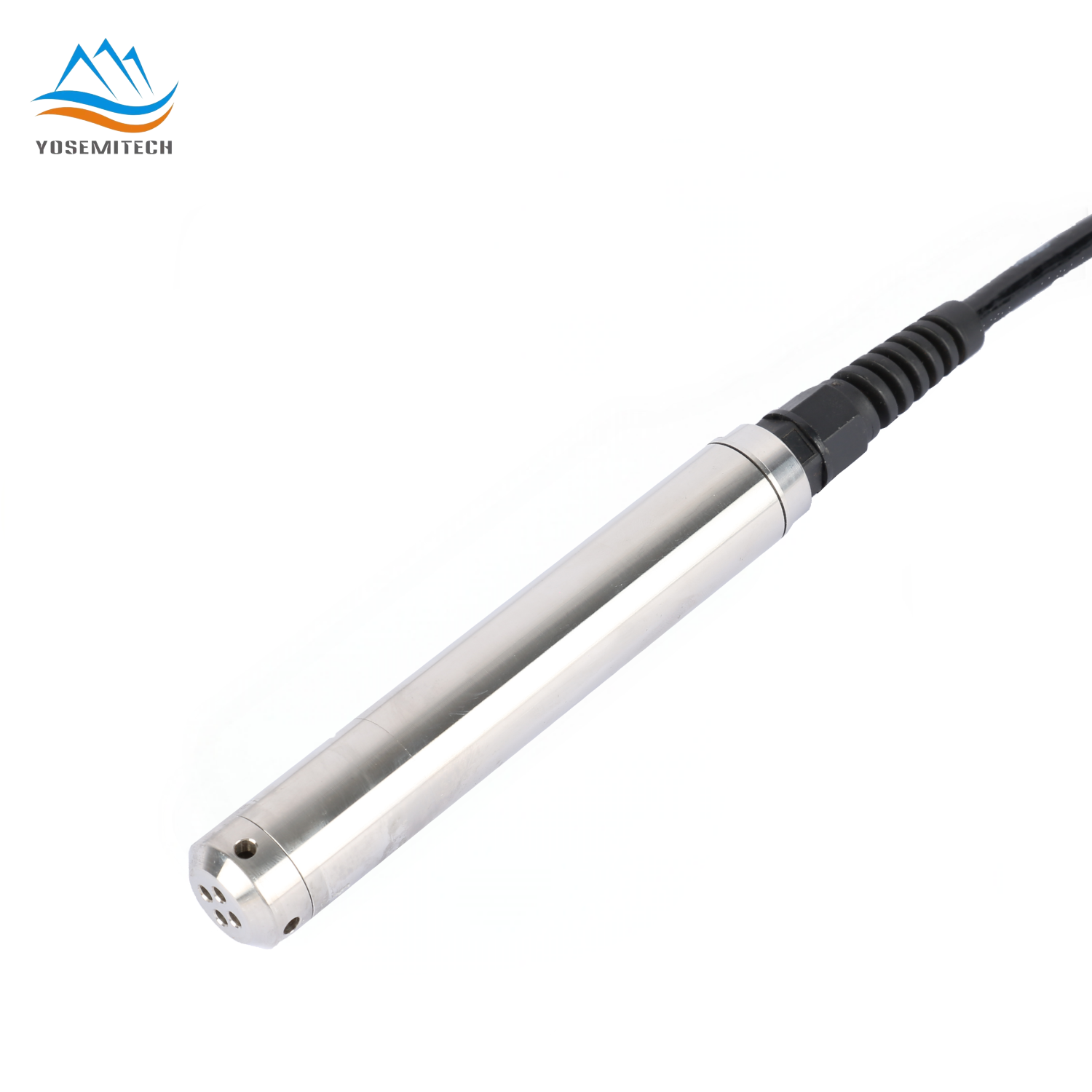

Y700-A Digital Depth Sensor Water Level Sensor

  • Product Model:Y700-A
  • Time: 2023-03-21 16:02:06
  • Product description:Yosemitech new Depth Sensor, a fully sealed input liquid level measuring instrument. This Water Level Sensor is composed of long-term stable and reliable diffusion silicon depth sensor, high precision special circuit and 316L stainless steel shell. The integrated structure and standardized signal provide convenience for field use and automation control. The special cable is sealed and connected with the housing, which can be used in liquid compatible with the structure material of the transmitter for a long time.

Overview

Yosemitech new Depth Sensor, a fully sealed input liquid level measuring instrument. This Water Level Sensor is composed of long-term stable and reliable diffusion silicon depth sensor, high precision special circuit and 316L stainless steel shell. The integrated structure and standardized signal provide convenience for field use and automation control. The special cable is sealed and connected with the housing, which can be used in liquid compatible with the structure material of the transmitter for a long time.
The product has better repeatability and stability, strong and durable, and has high economy. It is suitable for water level measurement of rivers and lakes, liquid level measurement of containers and storage systems, water level monitoring of fire tanks, water level monitoring of rainwater sewage lifting pumps and pumping stations, and water level monitoring of inspection Wells.

Features

-Digital sensor, RS-485 output, support Modbus.
-Input measurement method.

Specifications

NameDepth Sensor
ModelY700-A
Measuring principleDifferential pressure type
Range0m-2m… 100m
Accuracy< 0.1% F.S.
Resolution0.01 m
Temperature range-10 to 70℃
Over load≤2.5 times the full-scale pressure
IP rangeIP68
InterfaceRS-485, MODBUS protocol
SizeΦ22mm*185.4mm (excluding cables)
Power0.1W (DC 5-30V, >50mA)
Stability±0.3% F.S. / year
Cable Polyethylene/polyurethane gas-conducting cable, 10 meters (default), customizable
Sensor housing material316L
