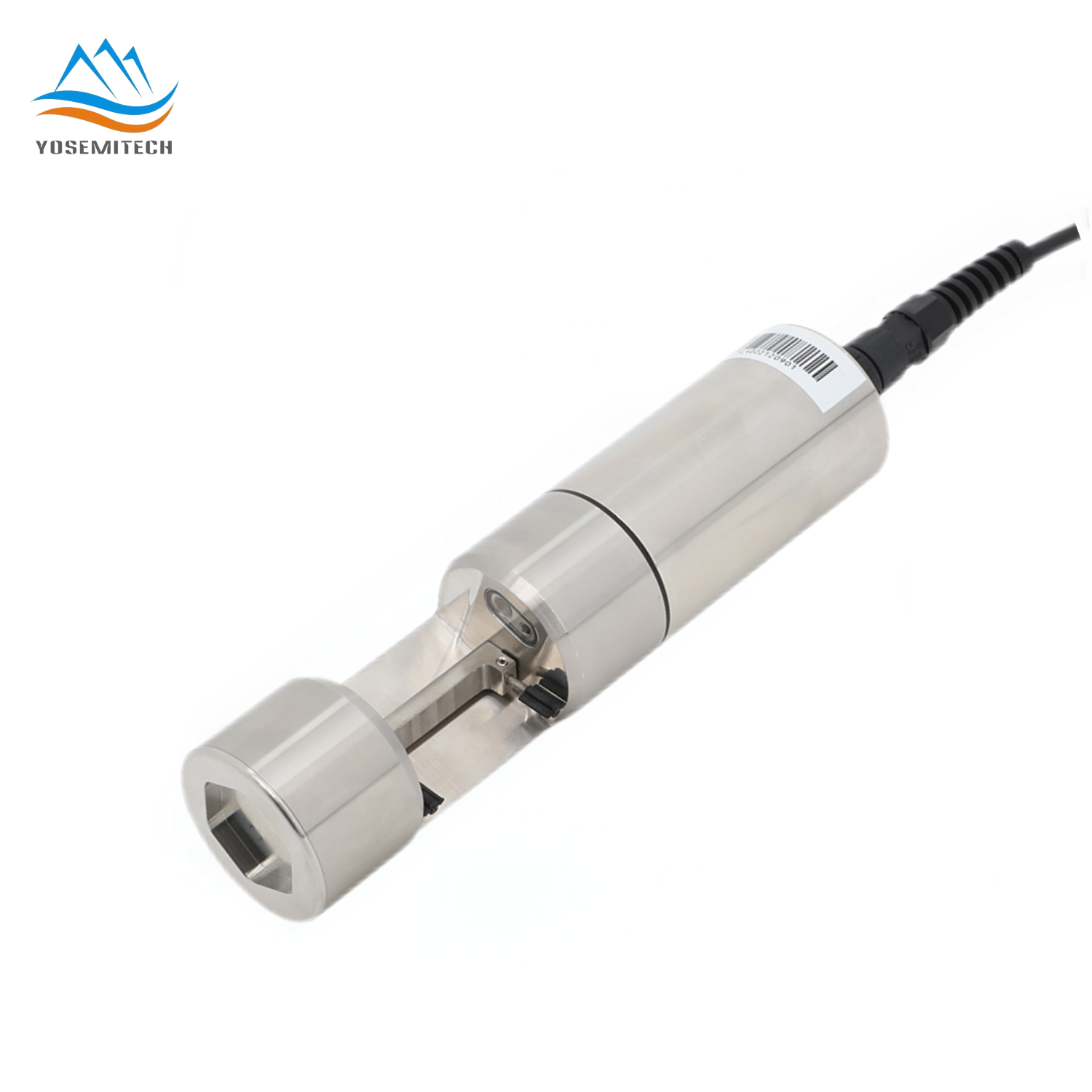

Y530-A Self-cleaning Transparency Sensor

  • Product Model:Y530-A
  • Time: 2023-05-12 08:58:37
  • Product description:Yoesemitech’s Y530-A Self-cleaning transparency sensor adopts the transmission light measuring method. Custom optical devices, small size, easy installation and maintenance, not easy to be affected by ambient light interference, with better repeatability and stability. Y530-A transparency sensor with automatic cleaning brush, it can eliminate the impact of bubbles and contamination on measurement, making maintenance cycle longer. Long-term online use can also maintain excellent stability.
  • Online Message
  • Email: sales@yosemitech.com

Product Description

Yoesemitech Y530-A self-cleaning Transparency Sensor adopts the transmission light method for monitoring. Custom optical devices, small size, easy to  install and maintain. Not easy to be affected by ambient light interference, with better repeatability and stability. Y530-A transparency sensor with automatic cleaning brush, and it can eliminate the impact of bubbles and contamination on measurement, making the maintenance cycle longer. Long-term online monitoring also can maintain excellent stability.

Y530-A Self-cleaning Transparency Sensor (3).jpg

Product Features

Small size, easy to intall and maintain, with better repeatability and stability;

The possibility of measuring transparency and temperature parameters;

Self-cleaning brush to prevent the adhesion of impurities and microorganisms;

Maintenance-free, long service life, low cost of use.

Product Size

self-cleaning transparency sensor size.png

Product Parameters


Name

Transparency Sensor

Model

Y530-A

Range

0~500cm

Accuracy

±5%

Resolution

0.1cm

Temperature range

0 ~ 50℃

Sensor Interface

Support RS-485, Modbus protocols

Power Requirements

DC 9~24V, 1A

Working Current

<100mA

Construction

Immersion installation

Sensor Size

Φ50mm*211.5mm

Maximum pressure

3bar

Housing IP Rating

IP68

Probe cable length

10m (default), customizable

Calibrate

one-point or two-points calibration

Sensor material

316L/ Ti
