Y600-A Multifunctional Handheld Meter

Product Model：Y600-A
Time: 2023-02-21 17:29:31
Product description：The Y600-A instrument is independently developed by Yosemitech. It provides keyboard and backlight with comprehensive functions, simple operation and brief interface. The instrument is a portable device that can automatically recognize Yosemite's digital sensors including optical dissolved oxygen, 4-electronic conductivity, turbidity, chlorophyll, BGA, OIW and TSS ,and can measure, display, log. The microprocessor based meter can transmit USB signals and perform sensor calibration easily on a single platform.
Online Message
Email: sales@yosemitech.com

Product Description

Yosemitech Y600-A handheld instrument is independently developed by Yosemitech. It provides keyboard and backlight with comprehensive functions, simple operation and brief interface. The instrument is a portable device that can automatically recognize Yosemite's digital sensors including optical dissolved oxygen, 4-electronic conductivity, turbidity, chlorophyll, BGA, OIW and TSS ,and can measure, display, log. The microprocessor based meter can transmit USB signals and perform sensor calibration easily on a single platform.

The dissolved oxygen sensor adopts the internationally leading fluorescence lifetime technology, which is based on the quenching principle of specific substances to active fluorescence in physics. The remarkable advantage of this fluorescence method in measuring dissolved oxygen is that it does not consume oxygen in the measurement process, so there is no flow rate limit, no need to preheat electrolyte, no need for maintenance and frequent calibration. The response time of Yosemitech optical dissolved oxygen probe is as low as 30 seconds, making the measurement of dissolved oxygen more accurate, more stable, faster and more convenient.

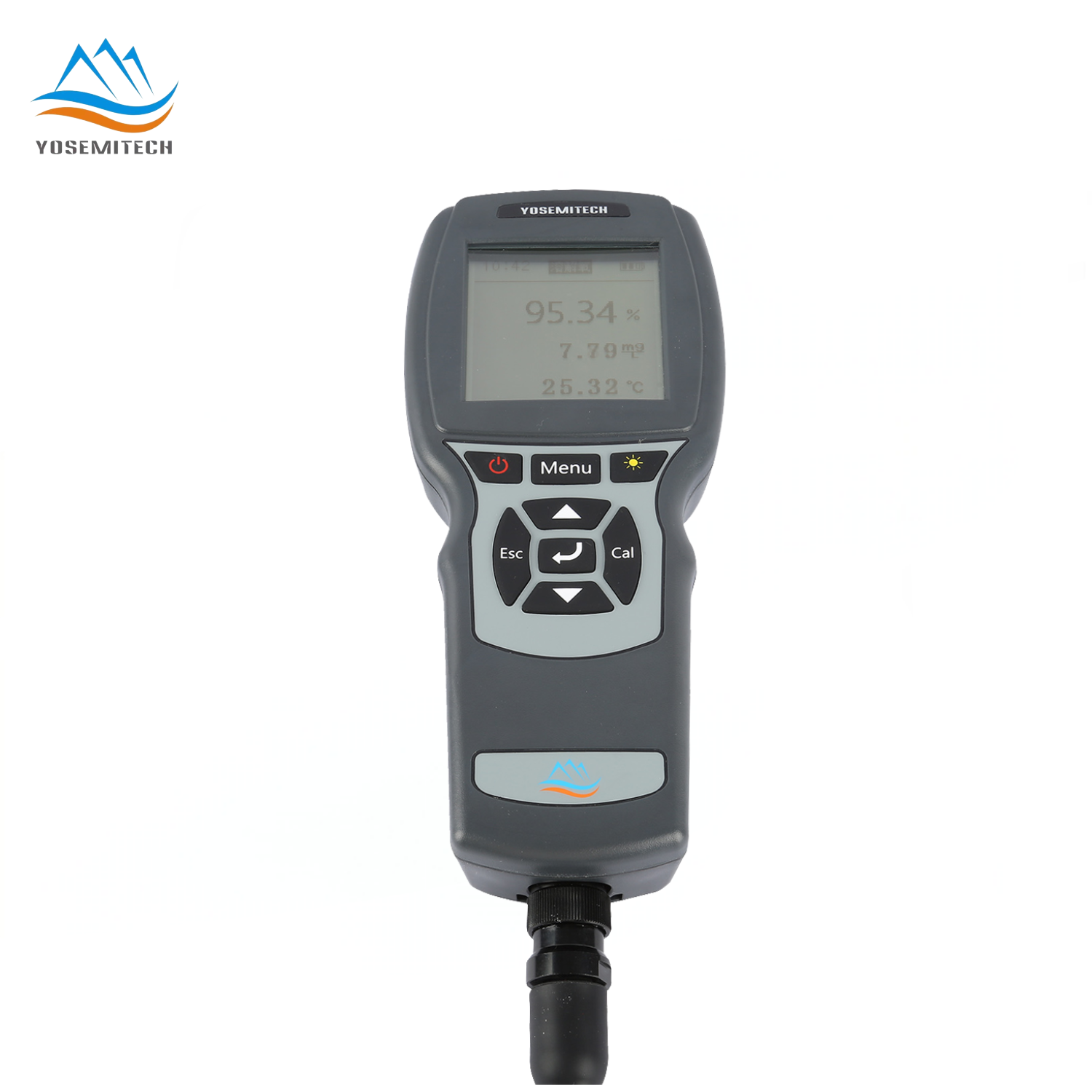

Y600-A Handed Instrument.jpg

Product Parameters

Probe Specifications
Y507-A Dissolved oxygen sensor	Range	0-20mg/L or 0-200% air Sat
	Accuracy	±1%
	Resolution	0.01mg/L
	Calibration	One-point or two-points calibration
Y510-B Turbidity sensor	Range	0.1~1000 NTU
	Accuracy	±5% or ±0.3 NTU（Take the larger value）
	Resolution	0.1 NTU
	Calibration	Zore point ,one-point or two-points calibration
Y521-A Conductivity sensor	Range	0.01～100mS/cm or 0~5mS/cm
	Accuracy	±1%
	Resolution	0.01mS/cm 0~5mS/cm: 0.01uS/cm
	Calibration	One-point or two-points calibration
Y532-B pH sensor	Range	pH:0～14
	Accuracy	±0.1
	Resolution	0.01
	Calibration	Three-points calibration
Y520-A Salinity sensor	Range	0~80ppt
	Accuracy	±1ppt
	Resolution	0.01 ppt
	Calibration	One-point or two-points calibration

Y533-A ORP sensor	Range	-999-999mV
	Accuracy	±20mV
	Resolution	1 mV
	Calibration	One-point calibration
Y515-A Chlorophyll sensor	Range	0-400ug/L or 0-100RF
	Resolution	0.1ug/L or 0.1%RFU
	Calibration	Zore point ,one-point or two-points calibration
Y613-B BGA sensor	Range	0-200000 cells/mL
	Detection Limit	300 cells/mL
	Resolution	1 cells/mL
	Calibration	Two-points calibration
Y512-A TSS sensor	Range	0.5-4000mg/L(Optional 0-10000mg/L)
	Accuracy	±5%
	Resolution	0.1mg/L
	Calibration	One-point or two-points calibration
Y616-B OIW sensor	Range	0-50 ppm or 0-0.40FLU
	Detection Limit	R²＞0.999
	Resolution	0.01 ppm
	Calibration	Zore point ,one-point or two-points calibration
Y517-A OIW sensor	Range	5ppm(NDSA)≈1.1ppm(BTEX)
	Detection Limit	5ppb(NDSA),1ppb(BTEX)
	Resolution	0.01 ppb
	Calibration	Zore point ,one-point or two-points calibration
Y551-B/C COD Sensor	Range	0-500 mg/L or 0-1500mg/L
	Accuracy	±5% equiv.KHP
	Resolution	0.01mg/L
	Calibration	One-point or two-points calibration
Y560-A NH4-N Sensor	Range	0-100mg/L（selectable 0~1000mg/L）
	Accuracy	±10% or ±0.5mg/L, take a larger value
	Resolution	0.01mg/L
	Calibration	NH4+: One-point or two-points calibration pH: Three-points calibration
Y519-A CDOM Sensor	Range	0-400ppb (Quinine sulfate solution standard in aqueous sulfuric acid solution)
	Resolution	0.01 ppb
	Calibration	One-point or two-points calibration
Other information	IP Rating	IP68
Other information	Sensor Interface	Supports RS-485, MODBUS protocol
Y600-A Instrument
Size	220 x 96 x 44mm
Weight	460g
Power	Two 18650 rechargeable batteries
Working temperature	0~50℃
Display	54.38 x 54.38LCD back illuminated
Data storage	Support
Pressure compensation	Built-in，auto compensation in 50~115kPa
IP rating	IP67
