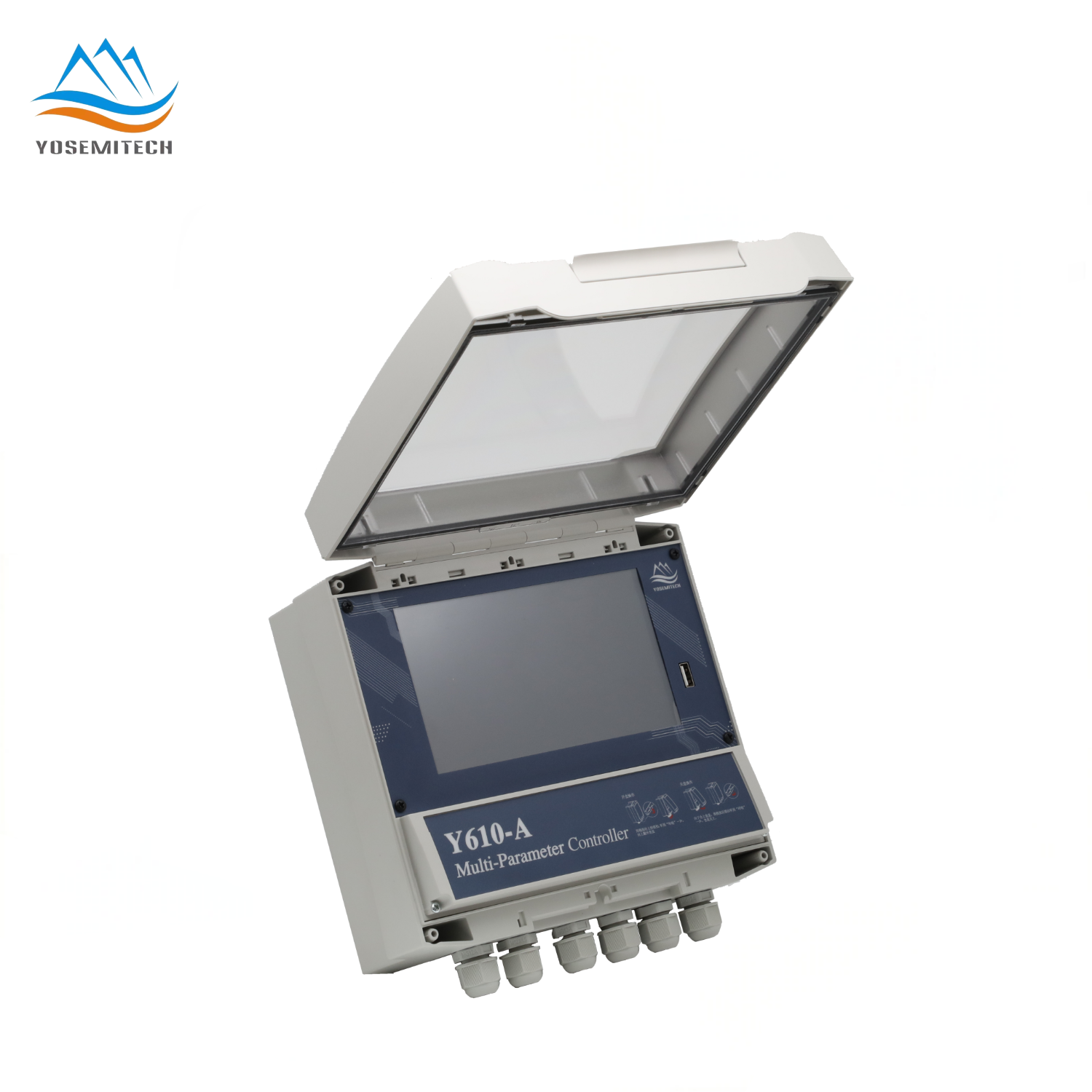

Y610-A Multi-parameter Controller

  • Product Model:Y610-B
  • Time: 2025-05-06 14:12:09
  • Product description:Yosemitech Y610-A is a universal multi-parameter Controller, which can connect intelligent sensor and multi-parameter sensor, realize sensor plug and play, real-time display of measurement values.

Overview

Yosemitech Y610-A is a universal multi-parameter Controller, which can connect intelligent sensor and multi-parameter sensor, realize sensor plug and play, real-time display of measurement values; Electrode installation and replacement are quick and convenient; A variety of data transmission methods can be selected, and has data storage and export functions. The multi-parameter transmitter has a simple interface and simple operation.

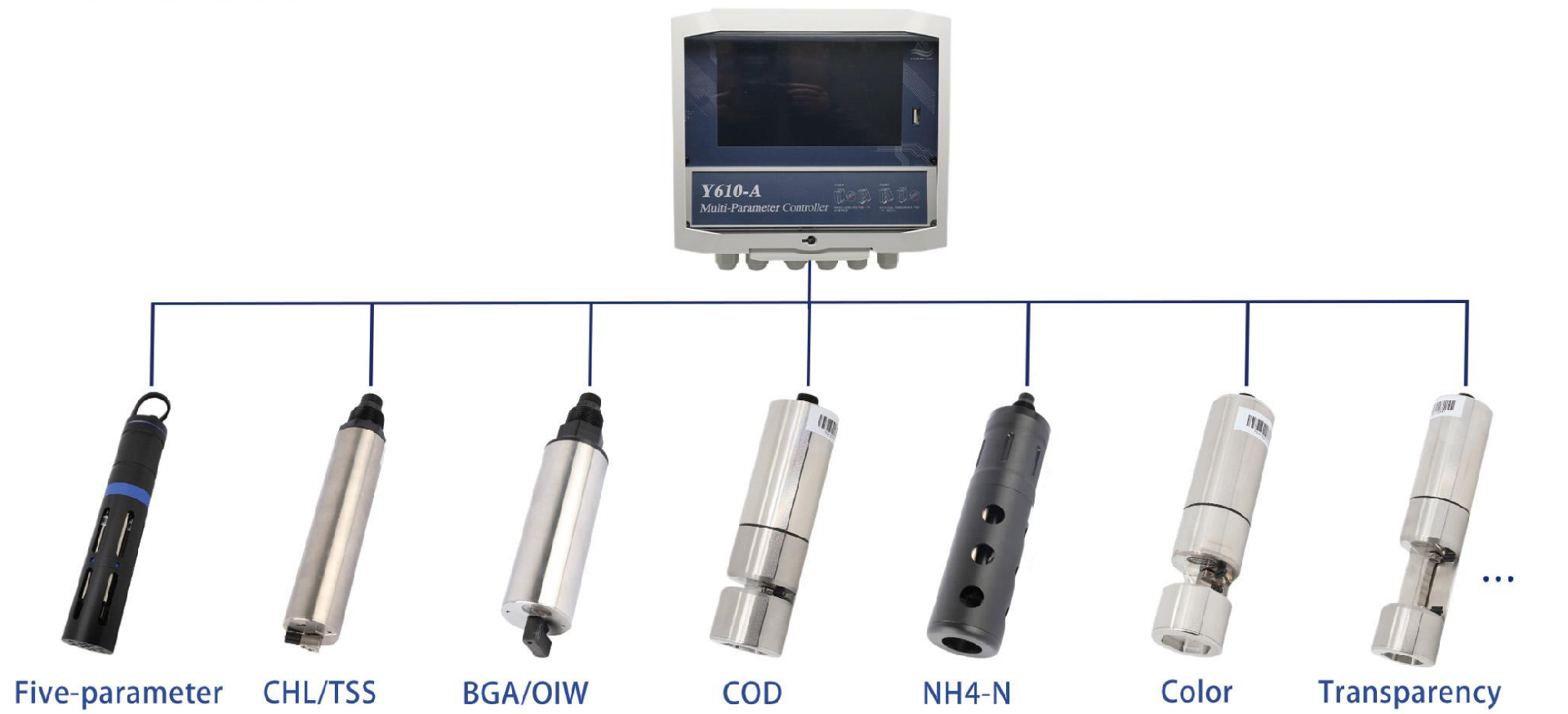

According to the customers' different needs, the multi-parameter transmitter can simultaneously monitor a variety of different parameters online by selecting sensors, including DO, pH, ORP, conductivity (salinity), turbidity, suspended matter, sludge concentration, chlorophyll, blue-green algae, oil in water, chroma and transparency and other parameters. One transmitter multi-purpose, easy control of water quality problems. It's widely used in automatic water quality monitoring of drinking water, surface water, industrial wastewater, domestic sewage and other fields.

Features

-Strong versatility, supports any combination of Yosemitech water quality sensors. Plug and play, with automatic identification.
-7'' color touch screen, easy to operate.
-Automatic data storage, real-time curve display, USB data export support, and local data storage capacity of over 2 years.
-Supports up to 8 channels of 4-20mA analog output with RS485 digital output, and more convenient for system integration.
-Wall-mounted design, small size, reliable and durable.

Specifications

Y610-A Multi-parameter Transmitter
Display7" color touch screen, LED backlight
Resolution800 * 480
I/O portRoute 2
RelayRoute 5
4-20mAStandard configuration: 1 channel (expandable to 8 channels)
Measurement parametersSupport Yosemitech digital sensors, such as online multi-parameter COD, ammonia nitrogen, ORP, salinity, BGA, chlorophyll, OIW, etc
Power supply220V AC or 24V DC(optional)
Communication protocolRS485, MODBUS-RTU standard protocol
Data storageContinuous storage for more than 2 years
Data copySupport USB flash drive export
MaterialABS shell
Working temperature0 to 50 ℃
Size225mm*229mm*119mm (height * width * thickness)
Installation methodWall-mounted


multiparameter controller.png
