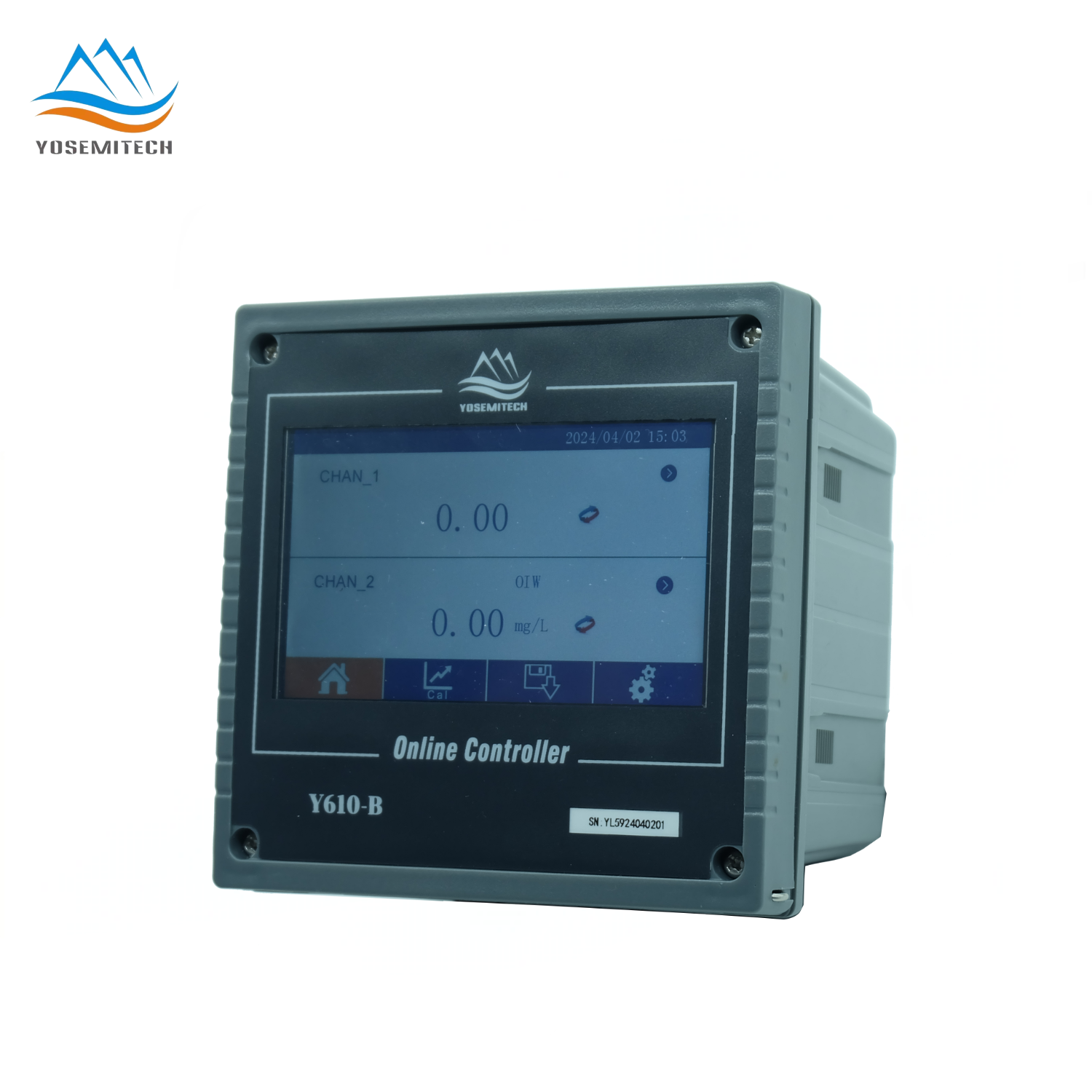

Y610-B Dual-Channel Transmitter

  • Product Model:Y610-B
  • Time: 2023-02-21 17:09:37
  • Product description:Yosemitech Y610-B Dual-channel Transmitter is very versatile and flexible, supporting the entire range of our digital sensors, and up to two probes can be connected at the same time, boosting system integration and lowering operating and maintenance costs.

Overview

Yosemitech Dual-Channel Controller's 5-inch color touch screen displays real-time measurement and control data. The menu bar interface is simple to set up and utilize. Electrode installation and replacement are quick and easy, and the device can also store and export data. Widely used in surface water, sewage plants, waterworks, water stations, industrial process control, and other water quality monitoring fields.

Features

-Strong versatility, support all of our digital sensors, can be connected to any two of our sensors at the same time.
-Improve integration, reduce operation and maintenance costs.
-Sensor plug and play, electrode quick installation and replacement.
-Support 4-20mA, MODBUS RS485 and other data transmission modes.
-5 inch color touch screen, simple operation interface, user-friendly.
-With time display, data storage and export functions, timely monitoring of parameter changes.
-Automatically prompt error and alarm information, and realize alarm signal upload.
-Wall-mounted installation/panel installation.

Specifications

Y610-B Dual-channel Transmitter
Display5-inch color touch screen
Power supply110-220V AC
Output1 channel RS485, 2 channels 4-20mA
Relay2 relay, program setting of response type and response value
Communication ProtocolStandard equipped with MODBUS RS485 communication function, capable of real-time transmission of measurement values
MaterialABS
Storage temperature-20 to 70℃
Working Temperature-15 to 60℃
Temperature pressureAutomatic compensation
Size151.44mm * 144.5mm * 117mm (Height * Width * Thickness)
Probe typeCOD, ammonia nitrogen, DO, conductivity, salinity, TUR, pH, CHL, BGA, OIW, TSS, color, transparency, etc.
Weight0.8kg
Data storageContinuous storage > 2 years


available sensors.png
