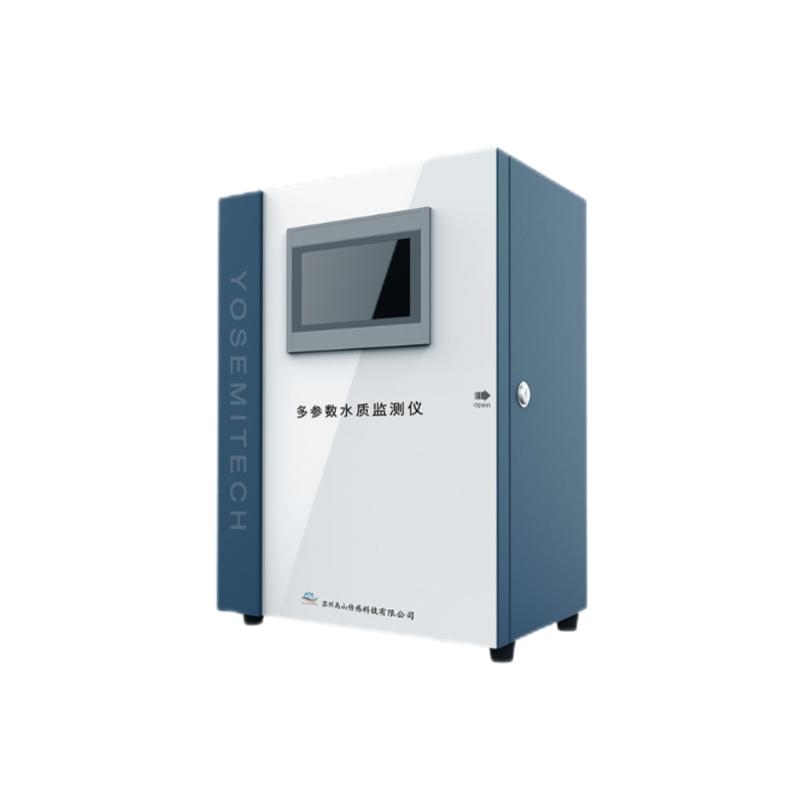

Yosemitech Y7000 Multi-parameter Water Quality Platform is specifically designed for online drinking water monitoring. The Y7000 integrates sensors for residual chlorine, turbidity, pH, conductivity, and temperature, offering real-time detection, local control, historical data recording, probe calibration, and optional remote transmission. This enables accurate and real-time monitoring of tap water quality while achieving remote transmission functionality. It allows users to conveniently grasp dynamic water quality data in real time and implement relevant processing measures.
The Y7000 features high integration and a compact design, enabling wall mounting to save installation space and reduce costs. It is widely applicable in scenarios such as water treatment plants, secondary water supply systems, end-of-pipe network water, direct drinking water, membrane-filtered water, swimming pools, and surface water monitoring.
- Standard parameters include residual chlorine, turbidity, pH, conductivity, and temperature. Automatic identification of Yosemitech sensors allows for flexible combinations, interchangeability, and seamless plug-and-play functionality.
- No chemical reagents are required, preventing secondary pollution and providing 24-hour continuous online water quality monitoring suitable for unattended environments.
- High internal integration of wiring and water pathways simplifies on-site installation; users only need to connect the power supply and water pipe interface.
- Equipped with a data storage function, enabling data visualization through tables and curves.
- Features an ultra-low flow design with online calibration capabilities.
Name | Multi-parameter Water Quality Monitoirng Station | ||||
Model | Y7000 | ||||
Measuring parameter | Residual chlorine | Turbidity | pH | Conductivity | Temperature |
Principle | constant voltage method | 90° scattering method | glass electrode method | four-electrode method | thermal resistance method |
Range | 0-2mg/L | 0-10NTU | 0-14 | 0-5000μS/cm | 0-50℃ |
Acuracy | ±2% or ±0.02mg/L | ±2% or ±0.02NTU | ±0.1pH | ±1% or ±10μS/cm | ±0.3℃ |
Resolution | 0.01mg/L | 0.001NTU | 0.01 | 0.1μS/cm | 0.1℃ |
Calibration | DPD single-point calibration | No calibration or single-point calibration | 2-point calibration | Single-point calibration | No calibration |
Power supply | 220VAC,50HZ,<5W | ||||
Display | HMI touch screen, easy to operate | ||||
Data transmission | Optional wireless network transmission, RS-485 transmission, etc. | ||||
Working temperature | 0-50℃(non-freezing) | ||||
IP range | Box IP55, sensor IP68 | ||||
Inflow flow rate | 0.35-0.8L/min | ||||
Inlet and outlet pipes | Inlet: 2-inch PE pipe; Outlet: 4-inch PE pipe | ||||
Material technology | Cold-rolled steel; Sheet metal bending, welding and painting | ||||
Installation | Wall-mounted type | ||||
Weight | 20KG | ||||
Size | Length * Width * Height = 545mm * 405mm * 250mm |
