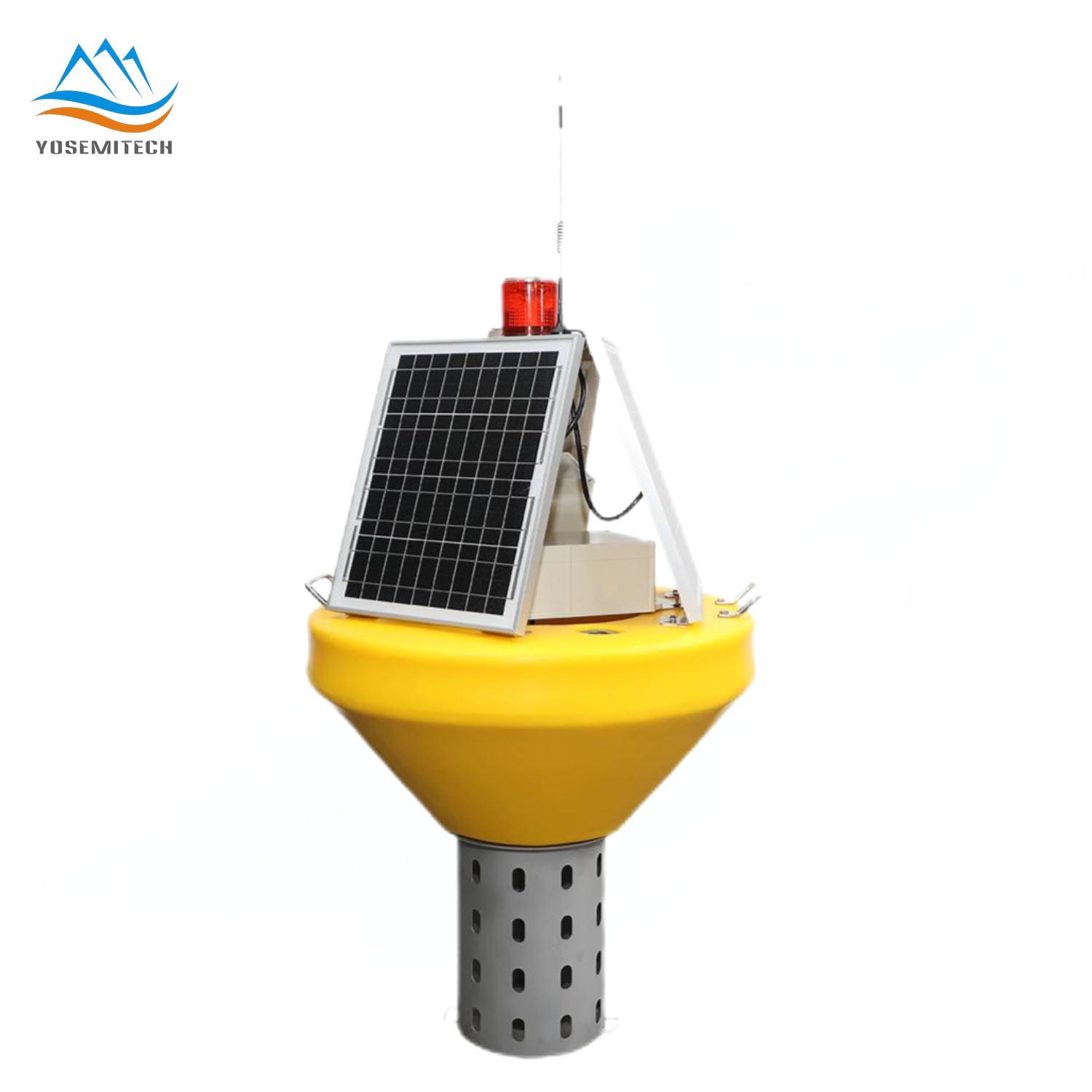

Y5500 Mini Data Buoy for Water Quality Monitoring

  • Product Model:Y5500
  • Time: 2023-02-23 11:03:58
  • Product description:Yosemitech Data buoy consists of a cross-linked ethylene vinyl acetate foam hull with tough coatings. A 45W solar panel is mounted on the top of the buoy to charge the battery pack inside the buoy which provides continuous power to data logger, communication module, and sensors. Stainless steel ring provides protection and lifting rigs for quick and easy deployment. The buoy can be moored to the river or lake bottom via anchor chains.

Overview

Yosemitech Y5500 Data buoy consists of a cross-linked ethylene vinyl acetate foam hull with tough coatings. A 45W solar panel is mounted on the top of the buoy to charge the battery pack inside the buoy which provides continuous power to data logger, communication module, and sensors. Stainless steel ring provides protection and lifting rigs for quick and easy deployment. The buoy can be moored to the river or lake bottom via anchor chains.

Features

-Light and stable, modular design.
-Easy deployment.
-Support many Yosemitech and third party probes.
-Stainless steel sensor protection guard.
-GPRS、3G、4G or NB-IOT available for data communication.

Specifications

NameBuoy Monitoring SystemMini Buoy Monitoring System
ModelY5000Y5500-Mini
SizeΦ920 x 750mmΦ590 x 940mm
Weight40kg23kg
Solar Panel Power40W30W
Battery Specification12V,54AH
MaterialPE housing, EVA filling, 316L, 304 stainless steel
Wireless TransmissionSupport GPRS,3G,4G,or NB-IOT optional
Software PlatformRemote transmission to thespecified doud platform or platform related services
SensorOnline multi-parameter sensorOnline multi-parameter sensor
UV254 COD sensorUV254 COD sensor
Ammonium sensorAmmonium sensor
NoteThe Y5500 Mini buoy system is smaller in size and lighter in weight compared to the Y5000 micro buoy. Correspondingly, it can carry fewer sensors at the same time

Buoy Monitoring System.png
