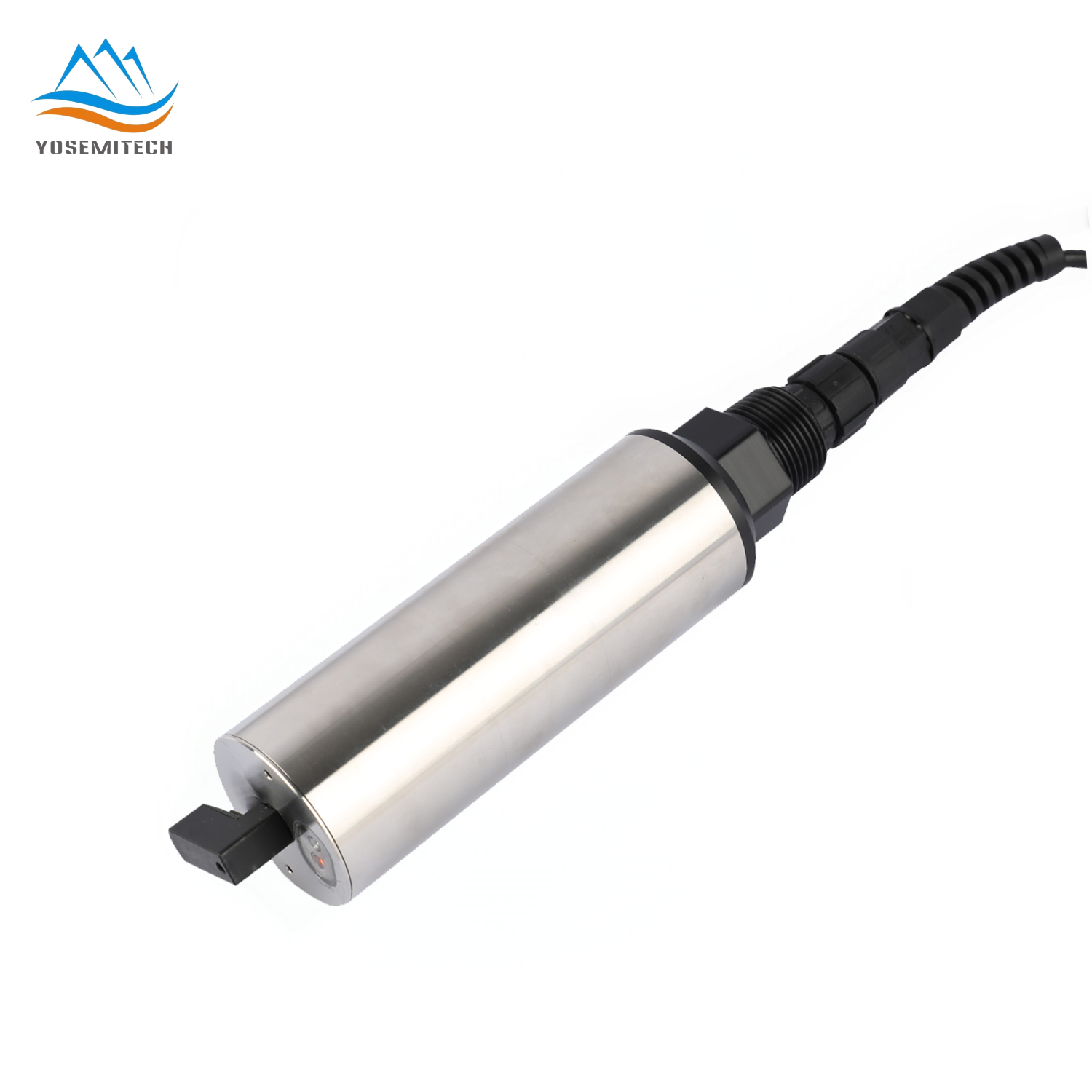

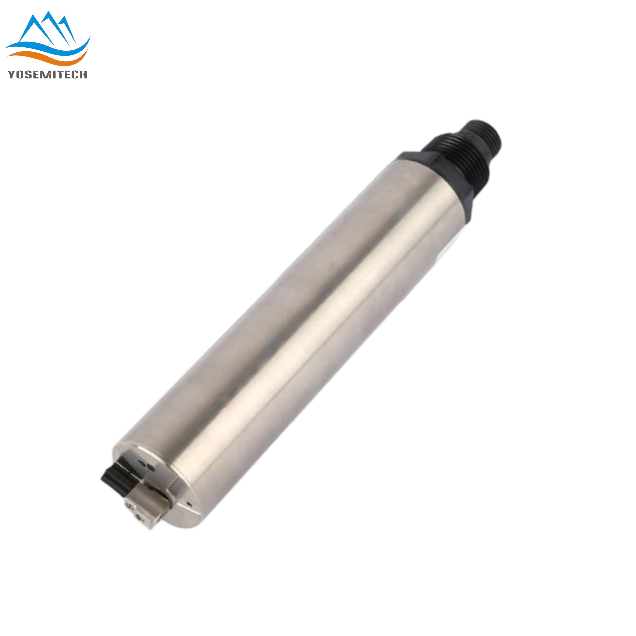

Y513-A Self-cleaning Blue-green Algae Sensor

  • Product Model:Y513-A
  • Time: 2019-09-18 03:52:30
  • Product description:Yosemitech Y513-A blue-gree algae sensor adopts ultraviolet fluorescence method measuring principle. Compared with other methods, the fluorescence method is proven to be more efficient, fast and repeatable.

Overview

Yosemitech Y513-A Blue-Gree Algae Sensor adopts ultraviolet fluorescence method measuring principle. Compared with other methods, the fluorescence method is proven to be more efficient, fast and repeatable. The Online Blue Green Algae sensor with self-cleaning brush can automatic clean up air bubbles, debris, and biofilm, therefore reduce the interference of contamination on measurement data, make the maintenance period longer, and maintain excellent stability for long-term online use. It can be widely used in rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources and other fields of algae and phytoplankton monitoring, investigation and research.

Features

-RS485 output, standard Modbus protocol compatible.
-With automatic cleaning wiper, effectively eliminate the bubbles and eliminate optical surface biofouling.
-The fluorescence method is proven to be more efficient, fast and repeatable.
-On-line continuous monitoring, real-time control of water quality dynamics.

Specifications

NameBlue Green Algae Sensor
ModelY513-A
Measuring principleFluorescence method
Range0- 300,000 cells/mL (Customizable 0- 2,000,000 cells/mL)
LinearityR²>0.999
Resolution1cells/mL
Temperature range0-50℃
Maximum water depth30m
IP rangeIP68
InterfaceRS-485,MODBUS protocol
Power supply0.2W(non-wiping)0.6W(wiping);DC 5-12V, >500mA
SizeΦ45mm*190.8mm
Cable length10 m (default), customizable
Calibration2-point calibration
Sensor housing material316L(Ti)
