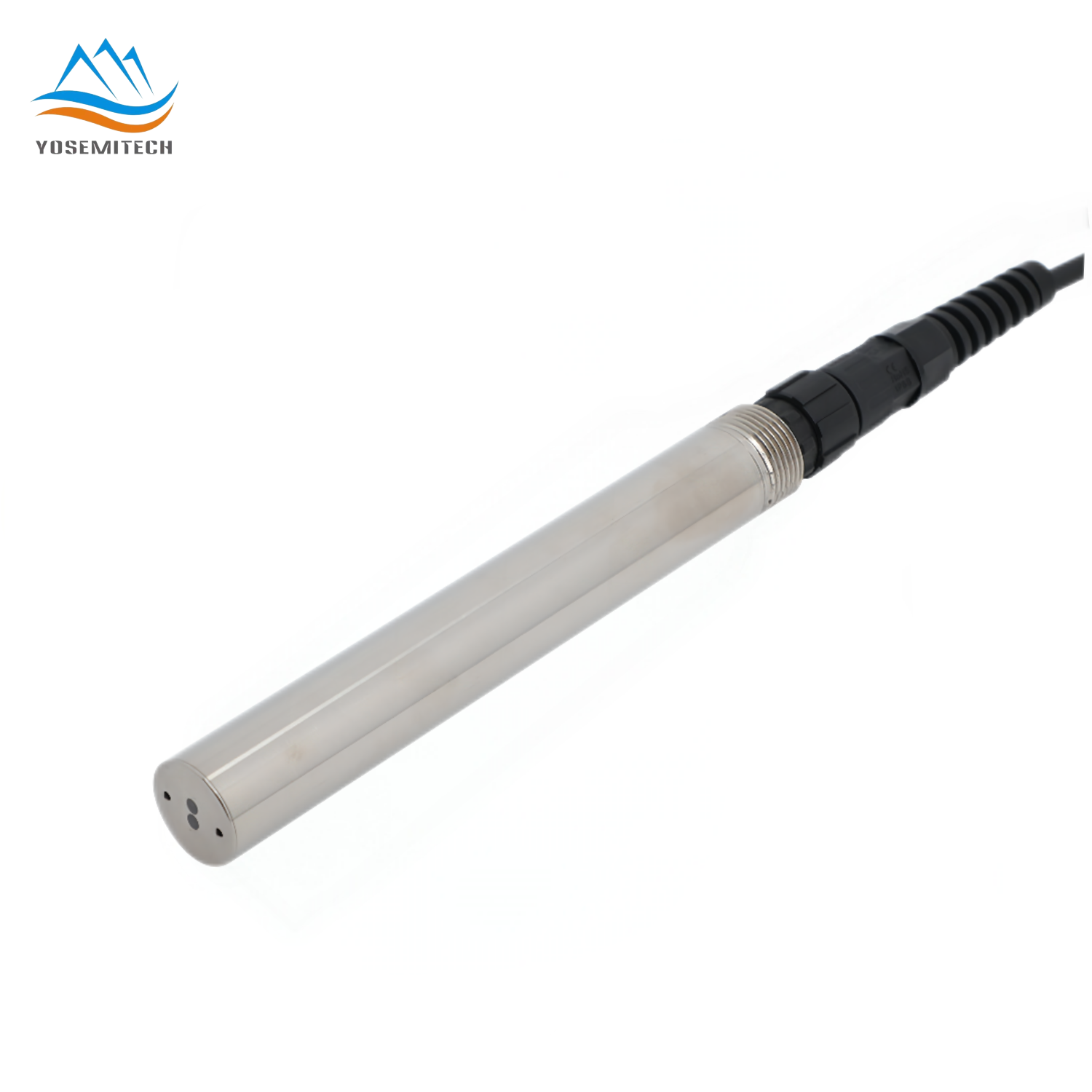

Y515-A Online Chlorophyll Sensor

  • Product Model:Y515-A
  • Time: 2023-05-06 15:26:51
  • Product description:Yosemitech Y515-A Online Chlorophyll Sensor uses advanced optical technology, featuring a compact, durable design with stable readings, and minimal maintenance, ideal for water quality monitoring.

Overview

Yosemitech Y515-A Online Chlorophyll Sensor adopts leading optical technology. According to the spectral absorption characteristics of chlorophyll a, the water body is illuminated by a high-energy LED light source to stimulate the chlorophyll a in the water to produce fluorescence of a specific wavelength, and the concentration of chlorophyll a in the water is measured. Chlorophyll-a is the primary photosynthetic pigment of algae and fluoresces when exposed to specific wavelength. Chlorophyll-a measurement can be used to assess living algae biomass of the bulk water. In numerous industrial and process related applications.

Features

-Digital sensor, RS-485 output, standard MODBUS protocol.
-No electrolyte required, strong anti-interference, no frequent calibration.
-Advanced LED fluorescence sensing technology.
-Sapphire window, never scratches, durable for field use.
-Built-in calibration parameters for easy on-site use and secondary calibration.
-Fast, convenient, in-situ monitoring.

Specifications

NameChlorophyll Sensor
ModelY515-A
Measuring principleFluorescence method
Range0-500μg/L
Accuracy±5% or 0.5μg/L(take the bigger one)
Temperature range0-50℃
Maximum water depth60m
IP rangeIP68
InterfaceRS-485,MODBUS protocol
Power supply0.2W(DC 6-24V,>50mA)
SizeΦ22mm*175.5mm
Cable length10 m (default), customizable
Calibration0-point or 1-point or 2-point calibration
Sensor housing materialTi
