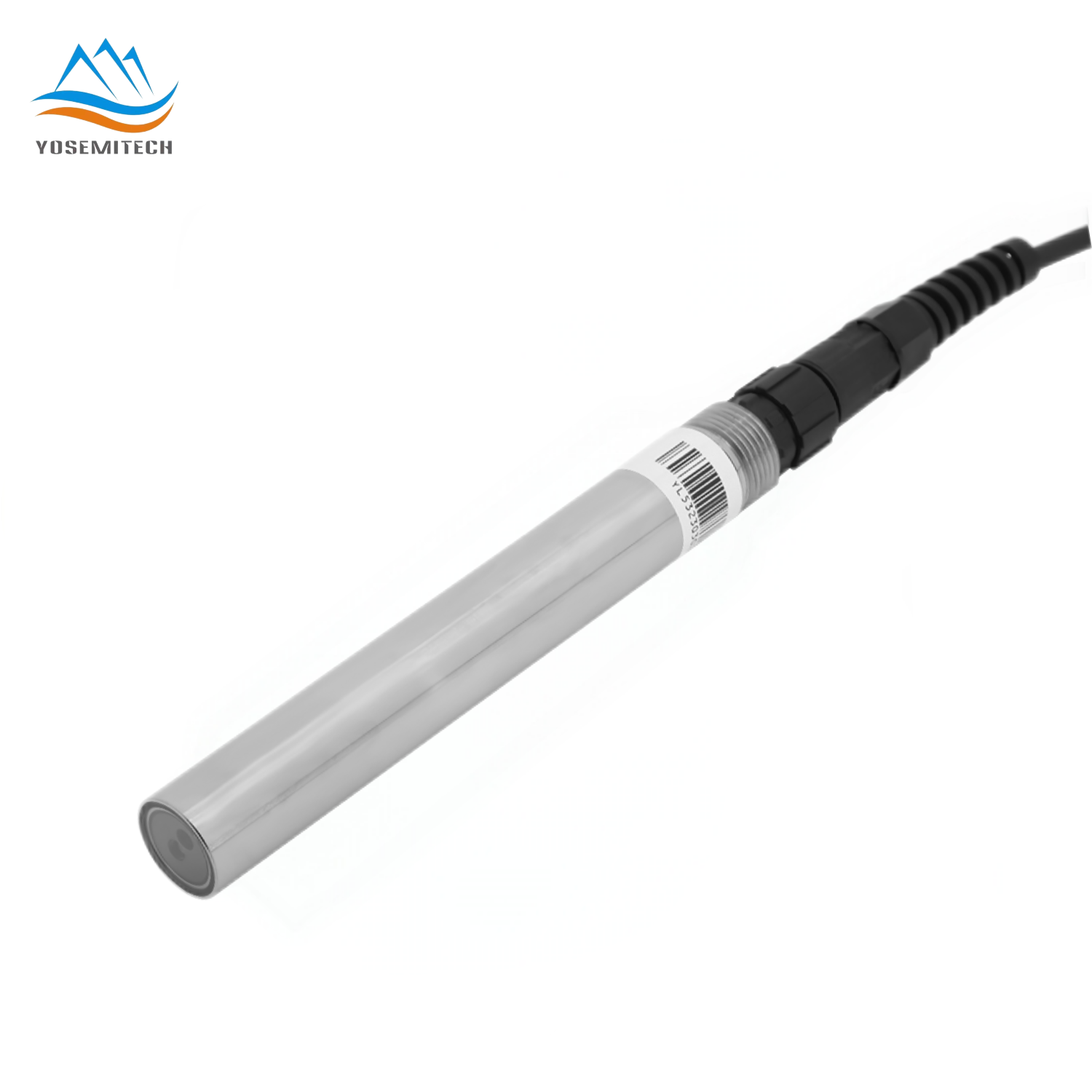

Y613-B Online Blue-green Algae Sensor

  • Product Model:Y613-B
  • Time: 2023-05-09 17:32:00
  • Product description:Yosemitech Y613-B Blue-green Algae Sensor uses ultraviolet fluorescence for efficient, real-time water quality monitoring. It’s widely used in rivers, lakes, ponds, aquaculture, drinking water, and marine water quality monitoring.
  • Online Message
  • Email: sales@yosemitech.com

Product Description

Yosemitech Y613-B Blue-green Algae Sensor adopts ultraviolet fluorescence method measuring principle. Compared with other water quality monitoring methods, the fluorescence method is proven to be more efficient, fast and repeatable. The blue green algae measurement instrument can be widely used in rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources and other fields of algae and phytoplankton monitoring, investigation and research.

Product Features

RS485 output, standard Modbus protocol compatible;

Advanced fluorescence sensor technology, simpler than traditional manual counting method;

No electrolyte required, fast detection, avoiding the impact of shelving water samples;

On-line continuous monitoring, real-time control of water quality dynamics;

Built-in calibration parameters for easy on-site use and secondary calibration

Product Size

blue-green algae sensor size.png

Product Parameters


Name

BGA Sensor

Model

Y613-B

Principle

fluorescence method

Range

0-200000 cells/mL

Detection Limit

300 cells/mL

Resolution

1 cells/mL

Linearity

R²>0.999±1ppt

Housing IP Rating

IP68

Maximum pressure

6bar

Temperature Range

0 ~ 50℃

Output

Support RS-485 output, Modbus protocol

Power Requirements

DC 9~24V,<50mA

Sensor Size

Φ22mm*175.5mm

Self-cleaning wiper

Null

Installation

Submersible installation

Probe cable length

10m (default), customizable

Housing material

Ti

Calibration

Two-points calibration
